CRL Brushed Stainless 6" x 10" LH Center Lock with Deadlatch in Office Function

Finish/Color : Brushed Stainless Steel
Item #: DL610L0BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 13.6 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Stainless 6" x 10" LH Center Lock with Deadlatch in Office Function
×
CRL Brushed Stainless 6" x 10" LH Center Lock with Deadlatch in Office Function
Quantity Standard Price Sale Price Your Price
CRL Brushed Stainless 6" x 10" LH Center Lock with Deadlatch in Office Function Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 34
Dallas, Texas 7/2/2024
Chicago (Elgin), Illinois 3
San Francisco/Oakland (Union City), California 7/4/2024
Atlanta, Georgia 7/2/2024
New York Area (Secaucus, New Jersey) 12
Boston (Taunton), Massachusetts 1
Orlando, Florida 7/2/2024
Denver, Colorado 7/2/2024
Seattle (Kent), Washington 4
Cleveland (Solon), Ohio 8
Philadelphia Area (Moorestown, New Jersey) 7/5/2024
Phoenix, Arizona 1
Las Vegas, Nevada 5
Houston, Texas 7/2/2024
Miami, Florida 7/2/2024
San Diego, California 7/1/2024
Carolinas and Virginia, South Carolina 1
Product details
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    1/2 in. (12 mm)
  • Handing
    Left Hand
  • Height
    10 in. (254 mm)
  • Width
    6 in. (152 mm)
Product Overview
  • Five Different Lock Functions Available; Office, Entrance, Passage, Storeroom, and Classroom
  • For 1/2" (12 mm) Glass; Custom Units for Other Glass Thicknesses on Special Order
  • Ships in Under a Week
  • Available in Five Finishes
  • Hassle Free Installation without the Mess of Cement or Silicone
  • Jamb Mount Strike Plates on Special Order
  • Use Monolithic Tempered Glass

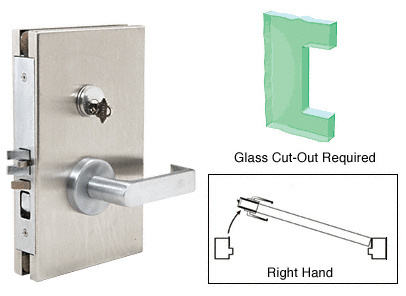

CRL 6" x 10" Center Locks with Deadlatch offer the most diversity in lock function and security. Available in five attractive finishes for 1/2" (12 mm) heavy glass doors. The operation of the lock varies with the lock function. A simple cut-out in the glass is all that is required. No messy cement or silicone required for installing. Center Locks are available left and right handed.

Office Lock Function: The Latchbolt is operated by lever on either side (except when outside lever is locked by rocker in faceplate) or by a key outside. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism and allow exiting.

Entrance Lock: Latch bolt is operated by lever on either side (except when Deadbolt is projected). Deadbolt is operated by key outside and thumbturn inside. Turning inside lever will retract Latch bolt and Dead bolt simultaneously to allow exiting.

Passage Lock: Latchbolt is operated by lever on either side. Turning inside lever will always retract the locking mechanism and allow exiting.

Storeroom Lock: Latchbolt is operated by lever inside, and by key outside. The outside lever is always fixed. Auxiliary Latchbolt deadlocks the main Latchbolt to prevent jimmying of lock. Turning inside lever will always retract the locking mechanism to allow exiting. This lock is used primarily with Electric Strikes.

Classroom Lock: Latchbolt is operated by lever either side except when outside lever is locked by Key outside. Key operates latch and unlocks outside lever. Inside lever is always operable.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
