CRL 31" Tubular Spiral Tilt Window Balance Blue Bushing

Item #: FH3130
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Pack

Shipping Weight : 7.92 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 31" Tubular Spiral Tilt Window Balance Blue Bushing
×
CRL 31" Tubular Spiral Tilt Window Balance Blue Bushing
Quantity Standard Price Sale Price Your Price
CRL 31" Tubular Spiral Tilt Window Balance Blue Bushing Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 35
Dallas, Texas 6/28/2024
Chicago (Elgin), Illinois 6/28/2024
San Francisco/Oakland (Union City), California 6/27/2024
Atlanta, Georgia 7/1/2024
New York Area (Secaucus, New Jersey) 7/1/2024
Boston (Taunton), Massachusetts 6/28/2024
Orlando, Florida 7/2/2024
Denver, Colorado 2
Seattle (Kent), Washington 7/2/2024
Cleveland (Solon), Ohio 7/1/2024
Philadelphia Area (Moorestown, New Jersey) 6/28/2024
Phoenix, Arizona 6/27/2024
Las Vegas, Nevada 6/27/2024
Houston, Texas 6/28/2024
Miami, Florida 7/2/2024
San Diego, California 6/26/2024
Carolinas and Virginia, South Carolina 7/2/2024
Product details
  • Bushing Color
    Blue
  • Heaviest Vent Weight Range
    35
  • Tube Diameter
    9/16
  • Tube Length
    31
  • Window Type
    Tilt
Product Overview
  • Blue Bushing Indicates Sash Load Weights of Up to 35 Pounds (15.9 Kg)
  • Tilt Window Type with Industry Standard 9/16" (14 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

This CRL Tubular Spiral Window Balance for tilt type windows will replace a 9/16" (14 mm) metal or plastic tube balance with a sash load capacity of up to 35 pounds (15.8 kg). While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.

How to Order Tubular Spiral Window Balances:
  • 1. Check the tube diameter of the metal or plastic tube on the old balance.

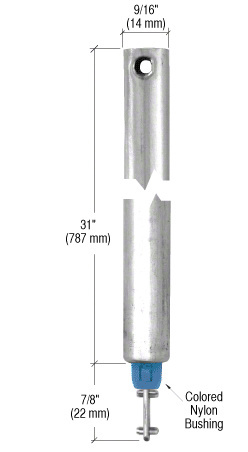

  • 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.
  • 3. Check the color of the nylon bushing.
  • 4. Verify that the rod extension protruding from the nylon bushing matches.
  • 5. Match tube diameter, tube length, nylon bushing color against the information shown next to the catalog number. If all agree, and the rod extension matches the one in the photo, then this is the correct balance.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Technical References & CAD Drawings
