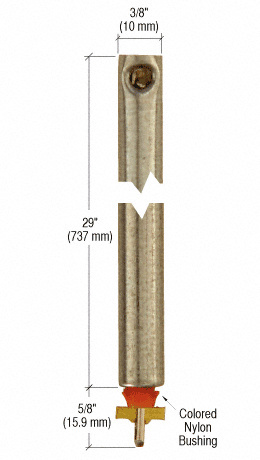

CRL 29" Tubular Spiral Non-Tilt Window Balance Red Bushing

Item #: FM2920
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 5.92 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 29" Tubular Spiral Non-Tilt Window Balance Red Bushing
×
CRL 29" Tubular Spiral Non-Tilt Window Balance Red Bushing
Quantity Standard Price Sale Price Your Price
CRL 29" Tubular Spiral Non-Tilt Window Balance Red Bushing Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 140
Dallas, Texas 31
Chicago (Elgin), Illinois 6/28/2024
San Francisco/Oakland (Union City), California 6/27/2024
Atlanta, Georgia 33
New York Area (Secaucus, New Jersey) 20
Boston (Taunton), Massachusetts 6/28/2024
Orlando, Florida 7/2/2024
Denver, Colorado 2
Seattle (Kent), Washington 7/2/2024
Cleveland (Solon), Ohio 7/1/2024
Philadelphia Area (Moorestown, New Jersey) 6/28/2024
Phoenix, Arizona 32
Las Vegas, Nevada 74
Houston, Texas 8
Miami, Florida 7/2/2024
San Diego, California 10
Carolinas and Virginia, South Carolina 7/2/2024
Product details
  • Bushing Color
    Red
  • Guides Attached
    No
  • Heaviest Vent Weight Range
    25
  • Series
    FM Series Balances
  • Tube Diameter
    3/8
  • Tube Length
    29
  • Window Type
    Non-Tilt
Product Overview
  • For Sash Load Weights of Up to 25 Pounds
  • Industry Standard 3/8" (10 mm) Tube Diameter
  • Will Replace Either Metal or Plastic Tube Balances

This standard duty CRL Tubular Spiral Non-Tilt Window Balance will replace a metal or plastic tube balances with a sash load capacity of up to 25 pounds. This unit will also replace spiral balances with a white bushing. While this balance is packaged and sold individually, it is our recommendation that both balances in the window be replaced at the same time.

How to Order Tubular Spiral Window Balances
  • 1. To select the proper Tubular Spiral Balance, check diameter of the metal or plastic tube on the old balance: 9/16" is Series "FJ"; 3/8" is Series "FM" or "FR", depending on the fitting at the end of the rod.
  • 2. Measure Tube Length only; do not include rod length.
  • 3. Check color of Nylon Bushing. If White or Red, select a Standard Duty Balance; if Blue, select a Heavy-Duty Balance.
  • 4. Verify if fitting on rod protruding from the Nylon Bushing matches. Select the appropriate series ("FM" or "FR") if balance diameter is 3/8".
  • 5. Order quantity required of each new balance by the catalog number.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
