CRL 21" Window Channel Balance - 2030 or 20-3

Item #: FA2030
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 8.0 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 21" Window Channel Balance - 2030 or 20-3
×
CRL 21" Window Channel Balance - 2030 or 20-3
Quantity Standard Price Sale Price Your Price
CRL 21" Window Channel Balance - 2030 or 20-3 Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 394
Dallas, Texas 6/21/2024
Chicago (Elgin), Illinois 6/21/2024
San Francisco/Oakland (Union City), California 17
Atlanta, Georgia 36
New York Area (Secaucus, New Jersey) 6/24/2024
Boston (Taunton), Massachusetts 6/21/2024
Orlando, Florida 6/25/2024
Denver, Colorado 13
Seattle (Kent), Washington 6
Cleveland (Solon), Ohio 6/24/2024
Philadelphia Area (Moorestown, New Jersey) 6/21/2024
Phoenix, Arizona 6/20/2024
Las Vegas, Nevada 18
Houston, Texas 6/21/2024
Miami, Florida 6/25/2024
San Diego, California 6
Carolinas and Virginia, South Carolina 6/25/2024

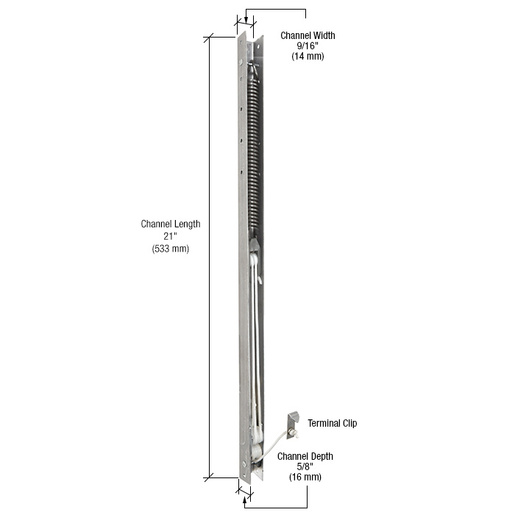

Product details
  • Channel Depth
    5/8
  • Channel Length
    21
  • Channel Width
    9/16
  • Guides Attached
    No
  • Number Stamped on Channel
    2030 or 20-3
  • Vent Weight Range
    12 To 14
Product Overview
  • Measures 5/8" (16 mm) Depth, but Referred to as 1/2" (13 mm) in the Trade
  • 10, 20, 30, 40, and 50 Weight Range Balances in Lengths from 13" to 43" (330 mm to 1.09 m)

Each CRL FA Series 3/30 Weight Range Sash Balances requires one of several types of nylon guides to be riveted onto the top and bottom of the channel. Customers can mount the guides using Cat. No. H3740 Rivet Set Tool (sold separately), which mushrooms the rivet, giving it a very strong set.

Guide Options are:
FS290B, FS291B, FS292B, FS293B, FS294B, FS295B, FS296B, FS297B, FS298B, and FS299B


Ordering Tips for FA Series Sash Balances

Remove the existing Channel Balance from the window. Measure the length of the metal channel only. Do not include the Guides. This measurement should be at full inch increments.

NOTE: There have been a few window manufacturers that have used special 1/2" (12.7 mm) increment channel lengths. These Channel Balances are not stocked, however they can be special ordered.

Always look for the stamped or laser etched number on the back of the Channel Balance. This number will either be four numbers or two numbers and a letter. For example: 2710 or 27-2.

Using the numbers on the back of the Channel Balance, refer to the chart. If you have a full 18" (457 mm) length channel, and the corresponding number on the back of the Channel Balance is 1710 or 17-1, the corresponding CRL Cat. No. is FA1710.

If you have a full 27" length channel, and the number on the back of the Channel Balance is 2610 or 26-1, the corresponding Cat. No. is FA2610. The chart also includes a vent weight range. This range indicates the amount of sash weight that a pair of Channel Balances will hold. This range does not account for any excessive weatherstrip friction.

NOTE: The weight range chart should be used for reference only, or if the stamped number is too difficult to read.

Special weight range Channel Balances are available by special order. The standard balance chart shows stocked weight ranges from FA1210 to FA4240. The 10, 20, 30, 40 and 50 represents the counter-balance weight designation. If your Channel Balance has a number 90 or 9, instead of the five weight ranges listed above (for example: 2790-26) this Channel Balance was made specifically to carry a 26-pound sash weight per pair of Balances. If your Channel Balance has a "DS" after the length, for example 27DS-34, this pair of Channel Balances was made specifically to carry a 34-pound sash weight. These special weight Channel Balances are sometimes designed specifically for upper or lower sashes only. This information will need to be provided at time of order.

Product Warning:

The first two numbers of the CRL Catalog Number do not represent the length of the channel.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
