CRL Aluminum ANSI Grade 1 Spring Size 3 Surface Mount Door Closer

Finish/Color : Aluminum
Aluminum
Item #: DC53A
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 5.511 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Aluminum ANSI Grade 1 Spring Size 3 Surface Mount Door Closer
×
CRL Aluminum ANSI Grade 1 Spring Size 3 Surface Mount Door Closer
Quantity Standard Price Sale Price Your Price
CRL Aluminum ANSI Grade 1 Spring Size 3 Surface Mount Door Closer Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 577
Dallas, Texas 25
Chicago (Elgin), Illinois 13
San Francisco/Oakland (Union City), California 11
Atlanta, Georgia 39
New York Area (Secaucus, New Jersey) 109
Boston (Taunton), Massachusetts 7/29/2024
Orlando, Florida 9
Denver, Colorado 144
Seattle (Kent), Washington 1
Cleveland (Solon), Ohio 7/29/2024
Philadelphia Area (Moorestown, New Jersey) 15
Phoenix, Arizona 16
Las Vegas, Nevada 8
Houston, Texas 74
Miami, Florida 10
San Diego, California 8
Carolinas and Virginia, South Carolina 30
Product details
  • Body Length
    8-7/8
  • Case Quantity
    10
  • Certification
    ANSI A156.4 Grade 1
  • Closer Type
    Surface Mount
  • Door Weight
    99-143
  • Finish/Color:
    Aluminum
  • Horizontal Mounting Holes
    8-3/16
  • Maximum Door Width - Exterior
    36 Inches
  • Maximum Door Width - Interior
    42 Inches
  • Product Details
    Dual Valve Closing and Latching Speed Control
  • Spring Size
    3
  • UL Listed
    Yes
  • Vertical Mounting Holes Center To Center
    3/4
Product Overview
  • Engineered for Commercial and Residential Use
  • Dual Valve Closing and Latching Speed Control
  • Reversible for Standard, Top-Jamb, and Parallel Arm Installations on Aluminum, Metal, and Wood Doors
  • Aluminum and Dark Bronze Finishes
  • ANSI A156.4 Grade 1
  • UL Listed

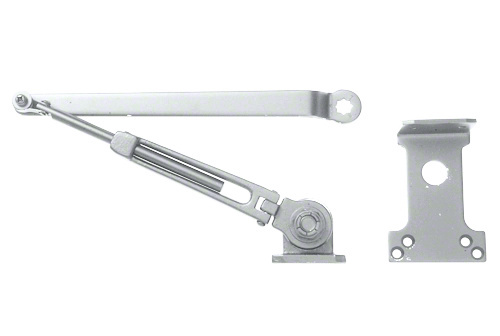

The CRL DC53 Size 3 Surface Mount Door Closer is perfect for most commercial applications. The Size 3 spring is suitable for interior doors up to 42" (1.07 m) and exterior doors up to 36" (914 mm) wide. Applicable door weight should be between 99 and 143 lbs. (45 and 65 kg). The closer is supplied with an adjustable back check feature to protect the doors and hardware from damage due to wind or violent door swings in the opening cycle. Both the closing and latching speeds are independently adjustable and will satisfy your customer's requirements for smooth operating door control. All CRL Surface Mounted Closers are U.L. listed and warranted for ten years. A parallel Arm Bracket and mounting hardware are included with each closer permitting universal installation for regular, top jamb or parallel arm applications. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.

Increase customer recognition with customized private labeling. CRL DC53, DC54 and DC55 models are available in plain boxes and are ready to be Private Labeled. To discuss the program and pricing in detail contact CRL Technical Sales.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
