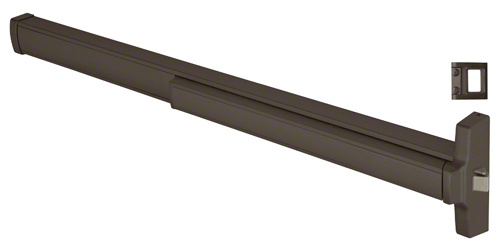

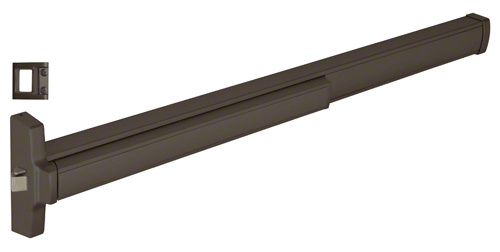

CRL 48" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel with 'S' Strike 4 Foot Dark Bronze Finish

Finish/Color : Dark Bronze
Item #: 312095LS4313
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 9.4 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 48" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel with 'S' Strike 4 Foot Dark Bronze Finish
×
CRL 48" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel with 'S' Strike 4 Foot Dark Bronze Finish
Quantity Standard Price Sale Price Your Price
CRL 48" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel with 'S' Strike 4 Foot Dark Bronze Finish Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 79
Dallas, Texas 1
Chicago (Elgin), Illinois 11/8/2024
San Francisco/Oakland (Union City), California 11/7/2024
Atlanta, Georgia 11/11/2024
New York Area (Secaucus, New Jersey) 1
Boston (Taunton), Massachusetts 11/11/2024
Orlando, Florida 11/12/2024
Denver, Colorado 11/12/2024
Seattle (Kent), Washington 11/12/2024
Cleveland (Solon), Ohio 11/11/2024
Philadelphia Area (Moorestown, New Jersey) 11/8/2024
Phoenix, Arizona 11/7/2024
Las Vegas, Nevada 11/8/2024
Houston, Texas 11/8/2024
Miami, Florida 11/13/2024
San Diego, California 11/6/2024
Carolinas and Virginia, South Carolina 11/12/2024
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Dark Bronze
  • Handing
    Left Hand Reverse Bevel (LHR)
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    2095
  • Panic Bar Base Height
    2-7/8 in. (73 mm)
  • Panic Bar Projection
    3 in. (76.2 mm)
  • Panic Bar Width Net
    46-1/2 in. (1181.1 mm)
  • Panic Dogging
    Push Button
  • Panic Head Height
    7-5/16 in. (185.7 mm)
  • Panic Type
    Rim
  • Push Pad Width
    23.5 in. (596.9 mm)
  • Recommended Door Type
    Aluminum Narrow,Medium,Wide Stile, Wood,Hollow Metal
  • Replacement Parts
    DL911SCKDDU,DL2170SCKDDU,302989313
  • Series
    20
  • UL Listed
    Yes
Product Overview
  • Designed for Use with Narrow, Medium and Wide Stile Aluminum Doors, as Well as Wood and Hollow Metal Doors
  • Complies with ANSI 156.3, Grade 1 Specifications
  • Concealed Fastening for Added Security
  • Can Be Cut to Size

CRL Jackson® Model 2095 Rim Latch Panic Devices are UL Listed Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. They are designed to withstand the rigors of today's world yet remain aesthetically pleasing. Suitable for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors, these devices are handed - not reversible, and feature concealed easy-to-use push button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, "Soft Touch" smooth quiet action push pad, and quick and installation. Available in Dark Bronze and Satin Aluminum anodized finish, this device comes standard with Type 'C' Strike #302436628, and may be ordered with optional Type 'S' Strike #302501628. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as DL911SCKDA, or a Jackson® Outside Lever Trim Model 9500LV using a 1" Mortise Cylinder (sold separately.) For wood door application order optional Wood Door Mounting Kit #302521.

SPECIFICATIONS:
2095 Rim Device
  • Requires Rim Cylinder for Keyed Entry
  • Cylinder Mounting Pad Not Required
  • 3/4" (19 mm) Throw Deadlocking Latch

    MATERIALS:
  • Body and Push Pad: Extruded Aluminum
  • Mechanical Components: Stainless and Hardened
    Plated Steel
  • Latch and Strikes: Sintered Steel
