No longer available.

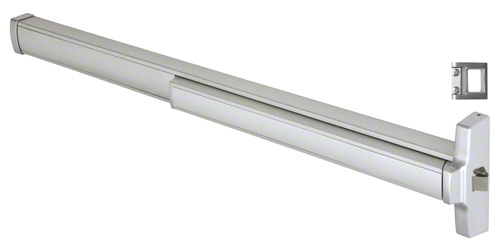

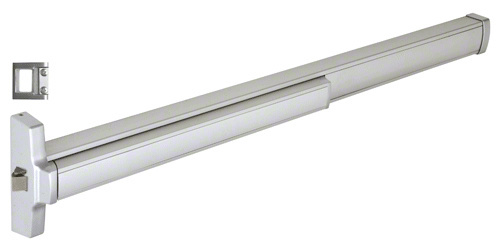

CRL 48" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel 'S' Strike Fits 32" to 48" Wide Door Satin Aluminum Finish

 Discontinued Item.
No longer available.
Finish/Color : Aluminum
Item #: 312095LS4628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 9.5 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 48" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel 'S' Strike Fits 32" to 48" Wide Door Satin Aluminum Finish
×
CRL 48" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel 'S' Strike Fits 32" to 48" Wide Door Satin Aluminum Finish
Quantity Standard Price Sale Price Your Price
CRL 48" Jackson® Model 2095 Grade 1 Rim Latch Panic Exit Device Left Hand Reverse Bevel 'S' Strike Fits 32" to 48" Wide Door Satin Aluminum Finish Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Aluminum
  • Handing
    Left Hand Reverse Bevel (LHR)
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    2095
  • Panic Bar Base Height
    2-7/8 in. (73 mm)
  • Panic Bar Projection
    3 in. (76.2 mm)
  • Panic Bar Width Net
    46-1/2 in. (1181.1 mm)
  • Panic Dogging
    Push Button
  • Panic Head Height
    7-5/16 in. (185.7 mm)
  • Panic Type
    Rim
  • Push Pad Width
    23.5 in. (596.9 mm)
  • Recommended Door Type
    Aluminum Narrow,Medium,Wide Stile, Wood,Hollow Metal
  • Replacement Parts
    DL911SCKDA,DL2170SCKDA,302989628
  • Series
    20
  • UL Listed
    Yes
Product Overview
  • Designed for Use with Narrow, Medium and Wide Stile Aluminum Doors, As Well as Wood and Hollow Metal Doors
  • Complies with ANSI 156.3, Grade 1 Specifications
  • Concealed Fastening for Added Security
  • Can Be Cut to Size

CRL Jackson® Model 2095 Rim Latch Panic Devices are UL Listed Certified ANSI 156.3 Grade 1, and manufactured in the Jackson® tradition of high quality and durability. They are designed to withstand the rigors of today's world yet remain aesthetically pleasing. Suitable for use with narrow, medium and wide stile aluminum doors, as well as wood and hollow metal doors, these devices are handed - not reversible, and feature concealed easy-to-use push button dogging, a 3/4" (19 mm) throw deadlocking latch bolt, "Soft Touch" smooth quiet action push pad, and quick and easy installation. Available in Dark Bronze and Satin Aluminum anodized finish, this device comes standard with Type 'C' Strike #302436628, and may be ordered with optional Type 'S' Strike #302501628. Keyed entry may be provided by ordering and installing a standard Rim Cylinder such as DL911SCKDA, or a Jackson® Outside Lever Trim Model 9500LV using a 1" Mortise Cylinder (sold separately). For wood door application order optional Wood Door Mounting Kit #302521.

SPECIFICATIONS:
2095 Rim Device
  • Requires Rim Cylinder for Keyed Entry
  • Cylinder Mounting Pad Not Required
  • 3/4" (19 mm) Throw Deadlocking Latch

    MATERIALS:
  • Body and Push Pad: Extruded Aluminum
  • Mechanical Components: Stainless and Hardened
    Plated Steel
  • Latch and Strikes: Sintered Steel

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
