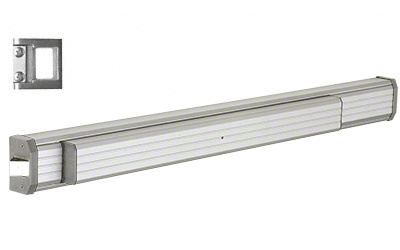

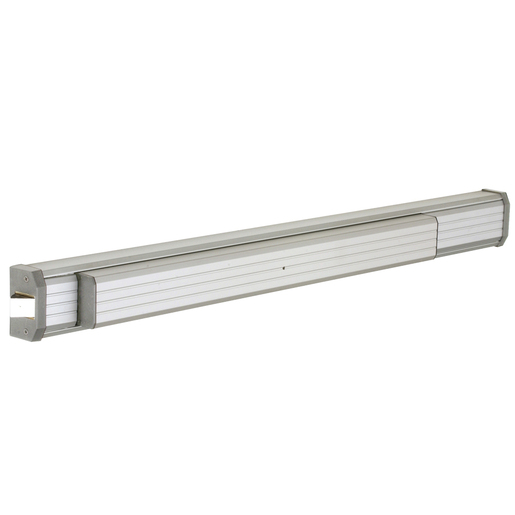

CRL Jackson® 1295 Push Pad Rim Panic Exit Device - Fluted Texture Extrusion, 'S' Type Strike, 36", Aluminum

Finish/Color : Aluminum
Item #: 311295S3628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 6.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Jackson® 1295 Push Pad Rim Panic Exit Device - Fluted Texture Extrusion, 'S' Type Strike, 36", Aluminum
×
CRL Jackson® 1295 Push Pad Rim Panic Exit Device - Fluted Texture Extrusion, 'S' Type Strike, 36", Aluminum
Quantity Standard Price Sale Price Your Price
CRL Jackson® 1295 Push Pad Rim Panic Exit Device - Fluted Texture Extrusion, 'S' Type Strike, 36", Aluminum Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 6/17/2024
Dallas, Texas In Other Service Center
Chicago (Elgin), Illinois 5
San Francisco/Oakland (Union City), California 6/20/2024
Atlanta, Georgia In Other Service Center
New York Area (Secaucus, New Jersey) In Other Service Center
Boston (Taunton), Massachusetts 6/21/2024
Orlando, Florida 6/25/2024
Denver, Colorado 4
Seattle (Kent), Washington 6/25/2024
Cleveland (Solon), Ohio In Other Service Center
Philadelphia Area (Moorestown, New Jersey) 6/21/2024
Phoenix, Arizona 6/20/2024
Las Vegas, Nevada 2
Houston, Texas In Other Service Center
Miami, Florida 6/25/2024
San Diego, California In Other Service Center
Carolinas and Virginia, South Carolina 3
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    36 in. (914.4 mm)
  • Finish/Color:
    Aluminum
  • Handing
    Non Handed
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    1295
  • Panic Bar Base Height
    3-3/16 in. (81 mm)
  • Panic Bar Projection
    2-7/8 in. (73 mm)
  • Panic Bar Width Net
    34-1/2 in. (876.3 mm)
  • Panic Dogging
    Standard Hex Key Dogging
  • Panic Type
    Rim
  • Push Pad Width
    24 in. (609.6 mm)
  • Recommended Door Type
    Aluminum, Wood, Hollow Metal
  • Replacement Parts
    DL911SCKAA
  • Series
    1200
  • UL Listed
    Yes
Product Overview
  • Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
  • Soft-Touch Smooth Action Push-Pad
  • Can Be Cut to Size
  • Standard Hex Key Dogging

The sleek, contemporary CRL Jackson® 1295 Series Rim Panic Exit Device is designed for use with narrow stile aluminum, hollow metal or wood single doors, or paired doors when used with the 896 removable mullion. Sized for 36" standard openings, but may be trimmed for narrower conditions.

SPECIFICATIONS:

1295 Rim Device
  • Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
  • Surface Mounted Roller Strike Standard
  • Requires Rim Cylinder for Keyed Entry

    MATERIALS:
    Base and Push-Pad: Extruded Aluminum
    Mechanical Components: Stainless and Hardened, Plated Steel
    Latch and Strikes: Sintered Steel
    Metal End Caps

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Technical References & CAD Drawings
