CRL Satin Aluminum Jackson® 10 Series with "S" Strike Right Hand Reverse Bevel Paddle Rim Panic Exit Device

Finish/Color : Aluminum
Aluminum
Item #: 311095PRS628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 12.48 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Aluminum Jackson® 10 Series with "S" Strike Right Hand Reverse Bevel Paddle Rim Panic Exit Device
×
CRL Satin Aluminum Jackson® 10 Series with "S" Strike Right Hand Reverse Bevel Paddle Rim Panic Exit Device
Quantity Standard Price Sale Price Your Price
CRL Satin Aluminum Jackson® 10 Series with "S" Strike Right Hand Reverse Bevel Paddle Rim Panic Exit Device Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 64
Dallas, Texas 6/4/2024
Chicago (Elgin), Illinois 6/4/2024
San Francisco/Oakland (Union City), California 6/6/2024
Atlanta, Georgia 6/4/2024
New York Area (Secaucus, New Jersey) 3
Boston (Taunton), Massachusetts 6/7/2024
Orlando, Florida 6/11/2024
Denver, Colorado 6/4/2024
Seattle (Kent), Washington 6/11/2024
Cleveland (Solon), Ohio 6/4/2024
Philadelphia Area (Moorestown, New Jersey) 6/5/2024
Phoenix, Arizona 6/6/2024
Las Vegas, Nevada 6/6/2024
Houston, Texas 6/4/2024
Miami, Florida 6/11/2024
San Diego, California 6/3/2024
Carolinas and Virginia, South Carolina 1
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Finish/Color:
    Aluminum
  • Handing
    Right Hand Reverse Bevel (RHR)
  • Includes
    Mounting Hardware
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    1095 Paddle
  • Paddle Push Width
    3-3/8 in. (85.7 mm)
  • Panic Bar Projection
    4-5/8 in. (117.5 mm)
  • Panic Dogging
    Screw Driver
  • Panic Head Base Width
    1-1/4 in. (31.8 mm)
  • Panic Head Height
    7-5/16 in. (185.7 mm)
  • Panic Type
    Rim (Paddle)
  • Recommended Door Type
    Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
  • Replacement Parts
    30115, 301117628, 301409, DL911SCKDA, DL911SCKAA
  • Series
    10
  • UL Listed
    Yes
Product Overview
  • Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors

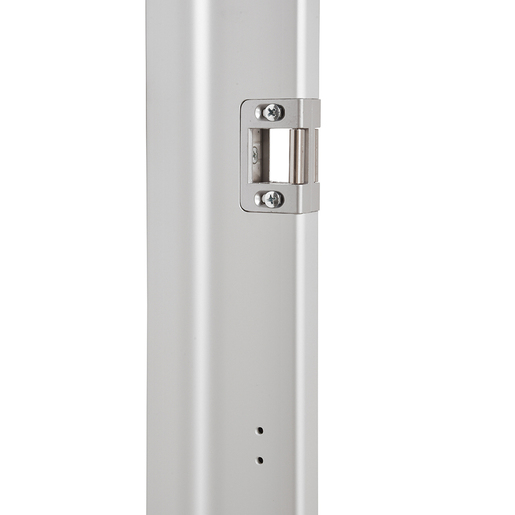

  • S Strike for Additional Security
  • Handed, Non-Reversible

CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This paddle device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
