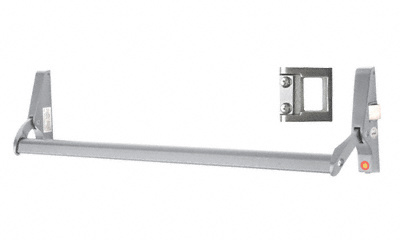

CRL Satin Aluminum 48" Jackson® 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike

Finish/Color : Aluminum
Aluminum
Item #: 311095RS4628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 4.63 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Aluminum 48" Jackson® 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
×
CRL Satin Aluminum 48" Jackson® 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike
Quantity Standard Price Sale Price Your Price
CRL Satin Aluminum 48" Jackson® 10 Series Right Hand Reverse Bevel Crossbar Rim Panic Exit Device, 'S' Type Strike Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 19
Dallas, Texas 10/18/2024
Chicago (Elgin), Illinois 10/18/2024
San Francisco/Oakland (Union City), California 10/17/2024
Atlanta, Georgia 10/21/2024
New York Area (Secaucus, New Jersey) 10/21/2024
Boston (Taunton), Massachusetts 10/21/2024
Orlando, Florida 10/22/2024
Denver, Colorado 1
Seattle (Kent), Washington 10/22/2024
Cleveland (Solon), Ohio 10/21/2024
Philadelphia Area (Moorestown, New Jersey) 10/18/2024
Phoenix, Arizona 10/17/2024
Las Vegas, Nevada 10/18/2024
Houston, Texas 10/18/2024
Miami, Florida 10/23/2024
San Diego, California 10/16/2024
Carolinas and Virginia, South Carolina 10/22/2024
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Aluminum
  • Handing
    Right Hand Reverse Bevel (RHR)
  • Includes
    Mounting Hardware
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    1095
  • Panic Bar Projection
    4-5/8 in. (117.5 mm)
  • Panic Bar Width Net
    48 in. (1219.2 mm)
  • Panic Dogging
    Screw Driver
  • Panic Head Base Width
    1-1/4 in. (31.8 mm)
  • Panic Head Height
    7-5/16 in. (185.7 mm)
  • Panic Type
    Rim
  • Recommended Door Type
    Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
  • Replacement Parts
    30115, 301117628, 301409, DL911SCKDA, DL911SCKAA
  • Series
    10
  • UL Listed
    Yes
Product Overview
  • Concealed Fastening for Added Security
  • Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
  • Available with Crossbar or Engraved "Push" Paddle Operation on Active Side

CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This crossbar is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 48" (1.22 m) long contoured crossbar is field sizeable, and the device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.

SPECIFICATIONS:
  • Contoured Field Sizeable 48" (1.22 m) Long Crossbar
  • Dual Dogging Feature – By Outside Cylinder - By Dogging Pins on Panic Housing
  • Wear Points Insulated by Nylon Sleeves and Rollers

    1095 Rim Device
  • Requires Rim Cylinder for Keyed Entry
  • Cylinder Mounting Pad Not Required

    MATERIALS:
  • Body and Arms: High Tensile Strength Aluminum
  • Mechanical Components: Stainless and Hardened Plated Steel
  • Latch and Strikes: Sintered Steel
