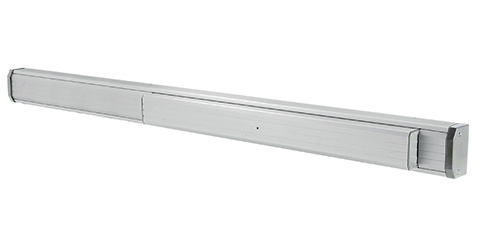

CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device

Finish/Color : Aluminum
Aluminum
Item #: 311285R4628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 8.0 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
×
CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
Quantity Standard Price Sale Price Your Price
CRL Satin Aluminum 48" Jackson® 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device Stock
Branch Location STOCK AVAILABILITY
Product details
  • Brand
    Jackson
  • Certification
    ANSI/BHMA 156.3
  • Door Height
    84 in. (2133.6 mm)
  • Door Thickness
    1-3/4 in. (44.5 mm)
  • Door Width
    48 in. (1219.2 mm)
  • Finish/Color:
    Aluminum
  • Handing
    Right Hand Reverse Bevel (RHR)
  • Includes
    Mounting Hardware
  • Material - End Cap
    Aluminum
  • Material - Housing
    Aluminum
  • Material - Latch & Strike
    Sintered Steel
  • Material - Mechanical Components
    Stainless and Hardened Plated Steel
  • Minimum Stile Width
    1-3/4 in. (44.5 mm)
  • Model
    1285
  • Panic Bar Base Height
    3-3/16 in. (81 mm)
  • Panic Bar Projection
    2-7/8 in. (73 mm)
  • Panic Bar Width Net
    46-1/2 in. (1181.1 mm)
  • Panic Dogging
    Standard Hex Key Dogging
  • Panic Type
    Concealed Vertical Rods
  • Push Pad Width
    24 in. (609.6 mm)
  • Recommended Door Type
    Aluminum Narrow, Medium, Wide Stile, Hollow Metal
  • Replacement Parts
    302861, 30821J628
  • Series
    1200
  • Tall Door Extention Rods
    301347 & 301348
  • UL Listed
    Yes
Product Overview
  • Suitable for Use with Narrow, Medium and Wide Stile Doors
  • Soft-Touch Smooth Action Push-Pad
  • Can Be Cut to Size
  • Standard Hex Key Dogging

This sleek, contemporary CRL Jackson® Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" (1.22 m) standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.

SPECIFICATIONS:

1285 Concealed Vertical Rod Device
  • Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
  • Standard Height 84" (2.13 m) - Extension Available
  • Requires Series 30821J Cylinder Mounting Pad When Using Mortise Cylinder for Keyed Outside Entry

    MATERIALS:
    Base and Push-Pad: Extruded Aluminum
    Mechanical Components: Stainless and Hardened, Plated Steel
    Latch and Strikes: Sintered Steel
    Metal End Caps
