CRL Jackson® Adjustable Spring Power Multi-Size 90º Hold Open Extended Spindle Overhead Concealed Closer

Item #: 20104M20
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 8.7 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Jackson® Adjustable Spring Power Multi-Size 90º Hold Open Extended Spindle Overhead Concealed Closer
×
CRL Jackson® Adjustable Spring Power Multi-Size 90º Hold Open Extended Spindle Overhead Concealed Closer
Quantity Standard Price Sale Price Your Price
CRL Jackson® Adjustable Spring Power Multi-Size 90º Hold Open Extended Spindle Overhead Concealed Closer Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 4172
Dallas, Texas 48
Chicago (Elgin), Illinois 112
San Francisco/Oakland (Union City), California 49
Atlanta, Georgia 63
New York Area (Secaucus, New Jersey) 107
Boston (Taunton), Massachusetts 57
Orlando, Florida 46
Denver, Colorado 36
Seattle (Kent), Washington 31
Cleveland (Solon), Ohio 40
Philadelphia Area (Moorestown, New Jersey) 6/5/2024
Phoenix, Arizona 22
Las Vegas, Nevada 9
Houston, Texas 35
Miami, Florida 5/29/2024
San Diego, California 11
Carolinas and Virginia, South Carolina 30
Product details
  • Americans with Disabilities Act
    Yes
  • Body Height
    1-11/16 in. (42.9 mm)
  • Body Length
    11-5/8 in. (295.3 mm)
  • Body Width
    3-11/16 in. (93.7 mm)
  • Case Quantity
    4
  • Closer Type
    Overhead Concealed
  • Door Height
    96 in. (2438.4 mm)
  • Handing
    Double Acting
  • Hold Open
    90°
  • Maximum Door Weight
    250 lbs. (113.4 kg)
  • Maximum Door Width - Exterior
    42 in. (1066.8 mm)
  • Maximum Door Width - Interior
    36 in. (914.4 mm)
  • Recommended Door Type
    Aluminum, Hollow Metal
  • Spindle
    7/8 in. (22.2 mm)
  • Spring Size
    Adjustable
  • UL Listed
    Yes
Product Overview
  • Adjustable Spring Power Size 1 (Barrier-Free) to Size 4 (Regular)
  • Can Retrofit Existing Fixed Spring Closers
  • Standard and Extended Spindle Models
  • 5 Year Limited Warranty

This CRL Jackson® Adjustable Spring Power Overhead Concealed Closer Body is designed for A.D.A. barrier-free applications and features a 7/8" extended spindle, the preferred length when used in conjunction with Patch Fittings or Rail Hardware on all glass doors. Its spring power is adjustable from a size 2 through 4 using Patented Dual Compression Technology providing finer spring tension adjustment and greater spring efficiency. With fully independent valves, this closer affords maximum adjustability when trying to balance building codes, stack pressure and keeping the door closed. It will easily retrofit most all fixed spring size Overhead Concealed Closers and is the choice of professionals the world over.

A.D.A. NOTE: Although the Adjustable Spring Power Door Closer can be adjusted to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.

Product Warning:

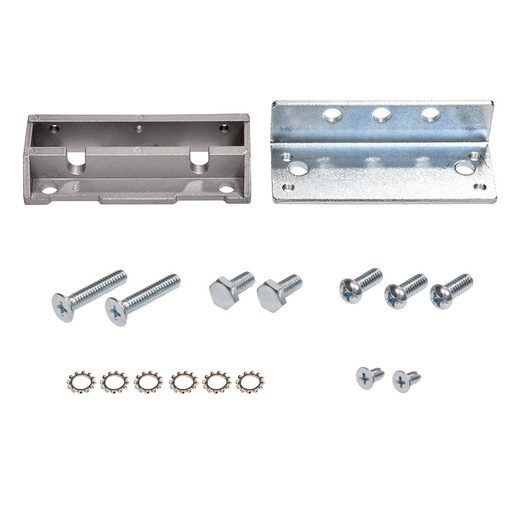

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Mounting clips are not included with this closer body. Unless the existing mounting clips are used, you will need to purchase the appropriate clip package for your application. Contact Jackson® Technical Sales Department for assistance in selecting the correct Mounting Clip Package.
