CRL 90º Hold Open Adjustable Spring Power Overhead Concealed Door Closer "GE" Package

Item #: CRL8760GE
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 9.17 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 90º Hold Open Adjustable Spring Power Overhead Concealed Door Closer "GE" Package
×
CRL 90º Hold Open Adjustable Spring Power Overhead Concealed Door Closer "GE" Package
Quantity Standard Price Sale Price Your Price
CRL 90º Hold Open Adjustable Spring Power Overhead Concealed Door Closer "GE" Package Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 98
Dallas, Texas 1
Chicago (Elgin), Illinois 7/30/2024
San Francisco/Oakland (Union City), California 15
Atlanta, Georgia 7/30/2024
New York Area (Secaucus, New Jersey) 7/30/2024
Boston (Taunton), Massachusetts 8/5/2024
Orlando, Florida 8/6/2024
Denver, Colorado 7/30/2024
Seattle (Kent), Washington 7/30/2024
Cleveland (Solon), Ohio 7/30/2024
Philadelphia Area (Moorestown, New Jersey) 8/2/2024
Phoenix, Arizona 1
Las Vegas, Nevada 8
Houston, Texas 7/30/2024
Miami, Florida 1
San Diego, California 4
Carolinas and Virginia, South Carolina 1
Product details
  • Americans with Disabilities Act
    Yes
  • Body Height
    1-11/16
  • Body Length
    11-5/8
  • Body Width
    3-11/16
  • Bottom Door Rail Depth
    1-1/2
  • Bottom Pivot Type
    Threshold Mount Pivot
  • Closer Type
    Overhead Concealed
  • Handing
    Double Acting
  • Hold Open
    90°
  • Includes
    CRL6760, CRL8010FS, CRL8010S, CRL8010GE
  • Material
    Aluminum
  • Maximum Door Weight
    200
  • Package Type
    Side Load GE
  • Recommended Door Type
    Aluminum, Hollow Metal
  • Replacement Parts
    CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
  • Similar
    CRL8960GE
  • Spindle
    1/2
  • Spring Size
    Adjustable
  • Top Rail Depth
    1/2
  • Type
    Center Hung
  • UL Listed
    Yes
Product Overview
  • Suitable for Doors from 36" to 42" to Meet A.D.A. Opening Force Requirements
  • Adjustable Side-Load Bottom Pivot Set for Threshold Mounting
  • 5 Year Limited Warranty
  • UL Listed

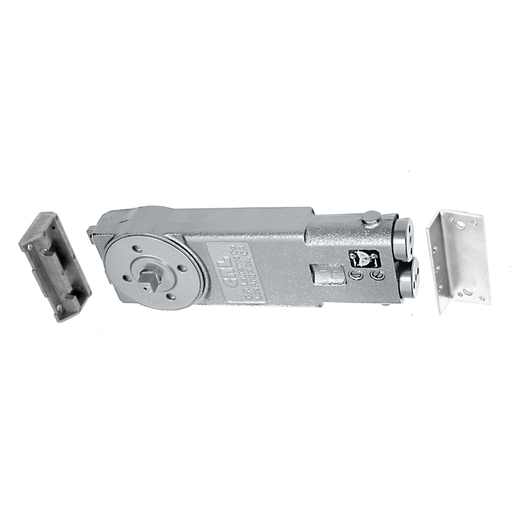

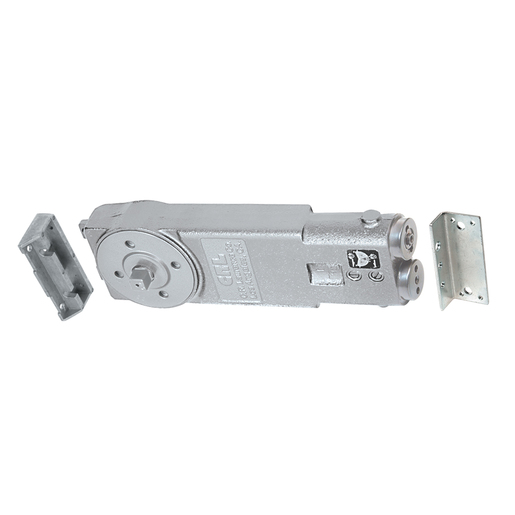

The CRL Adjustable Spring Power Overhead Concealed Door Closer is available to meet A.D.A. Opening Force requirements. Available as a body only with mounting clips to retrofit existing non-adjustable door closer installations, and as complete packages that includes the Door Closer, Mounting Clips, Type "S" Side-Load Arm or Type "A" End-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set or "GE" Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options are available.

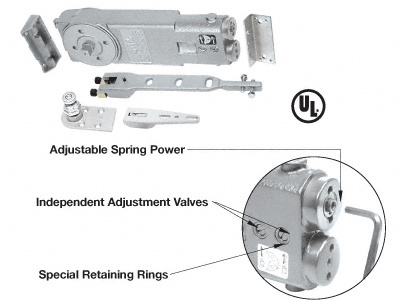

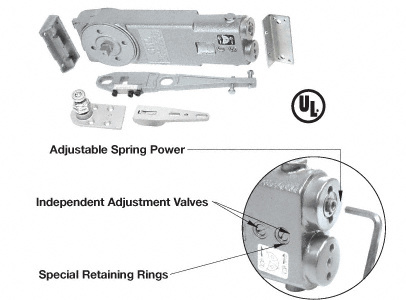

Adjustable Spring Power
Allows adjustment of spring tension from a minimum of 8-1/2 lbs. opening force to a medium spring size to accommodate site conditions and requirements.

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
