• Protects Door and Entryway
• Recommended for Moderate Traffic and Medium Weight Doors
• For Exterior or Interior Doors
• Concealed Slide Track in Top Door Rail Concealed and Surface Mounted
• Non-Handed
• ANSI 156.8 Grade 1

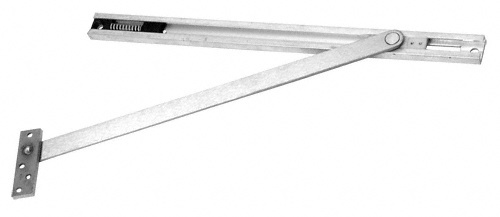

Rixson® Overhead Stops are used to protect both doors and entire entryways from damage caused by violent openings due to wind gusts, heavy traffic frequency, abuse, and vandalism. By limiting the door travel, they can prevent damage to the door frame, closer, hinges, and pivots. The heavy shock absorbing spring provides 5º to 7º compression before reaching a dead-stop. Maximum opening is 110º. Furnished with fasteners for both wood or metal door and frame.



FEATURES AND SPECIFICATIONS:

Door Type Offset Pivots/Hinges: 28-1/16" to 33" (713 to 838 mm)
Door Type Center-Hung Pivots: 30" to 36" (762 to 914 mm)

Low Profile Concealed Channel Slide Track

Designed for Installation in Aluminum Door Webbing and Door Rails

Designed for Moderate Traffic, Medium Weight Doors

Heavy Shock Absorbing Spring Provides 5º to 7º Compression Before Reaching a Dead-Stop

Furnished with Fasteners for Both Wood or Metal Door and Frame

Non-Metal Slide Block

110º Maximum Opening

Non-Handed

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
