CRL 316 Brushed Stainless 42" Left Hand LLPA Series Locking Ladder Pull - Curved Exterior

Finish/Color : Brushed Stainless Steel
Brushed Stainless Steel
Item #: LLPA110CLBS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Set

Shipping Weight : 27.778 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 316 Brushed Stainless 42" Left Hand LLPA Series Locking Ladder Pull - Curved Exterior
×
CRL 316 Brushed Stainless 42" Left Hand LLPA Series Locking Ladder Pull - Curved Exterior
Quantity Standard Price Sale Price Your Price
CRL 316 Brushed Stainless 42" Left Hand LLPA Series Locking Ladder Pull - Curved Exterior Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 7
Dallas, Texas 7/30/2024
Chicago (Elgin), Illinois 7/30/2024
San Francisco/Oakland (Union City), California 8/1/2024
Atlanta, Georgia 7/30/2024
New York Area (Secaucus, New Jersey) 7/30/2024
Boston (Taunton), Massachusetts 8/5/2024
Orlando, Florida 8/6/2024
Denver, Colorado 7/30/2024
Seattle (Kent), Washington 7/30/2024
Cleveland (Solon), Ohio 7/30/2024
Philadelphia Area (Moorestown, New Jersey) 3
Phoenix, Arizona 8/1/2024
Las Vegas, Nevada 8/1/2024
Houston, Texas 7/30/2024
Miami, Florida 2
San Diego, California 7/29/2024
Carolinas and Virginia, South Carolina 8/6/2024
Product details
  • Adaptor For 1 3/4 Inch Thick Doors
    LLPA134ADT
  • Diameter
    1-1/4 in. (32 mm)
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    1/2 in. (12 mm)
  • Handing
    Left Hand
  • Material
    316 Stainless Steel
  • Mounting Points
    3
  • Mounting Type
    Back-to-Back
  • Overall Length
    42 in. (1067 mm)
Product Overview
  • A.D.A. Compatible Thumbturn
  • Locks Into the Floor Only
  • Adaptor Kits Available for Use on 1-3/4" (45 mm) Thick Doors - LLPA134ADT
  • Lock Operates at a Comfortable 42" (1.07 m) Above the Floor
  • 1-1/4" (32 mm) Diameter Alloy Available in 316 Grade Brushed or Polished Stainless Steel Tubing
  • Custom Sizes Ship Within One to Two Weeks
  • A.D.A. Compliant Models Available - Ask for a Quote Here

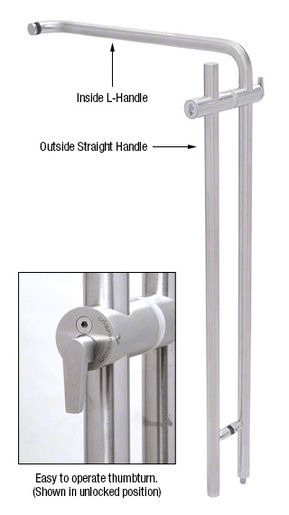

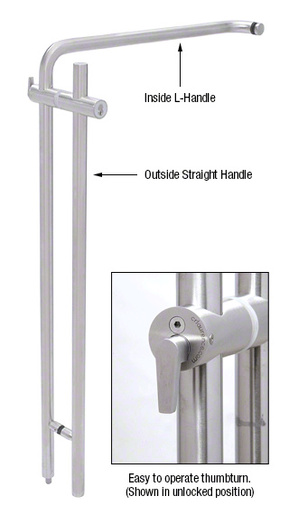

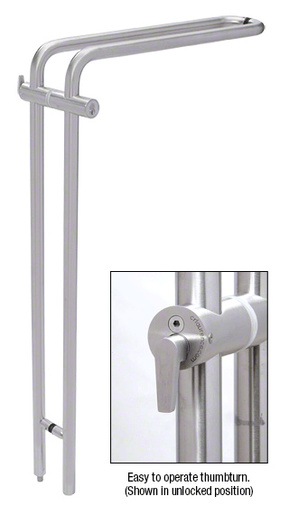

CRL LLPA Series Locking Ladder Pulls have a fully concealed deadbolt locking mechanism. No need to bend, simply turn a key or thumbturn located at a comfortable height above the finished floor to lock or unlock your doors. These Locking Ladder Pulls are intended for use with glass doors made from 1/2" to 3/4" (12 to 19 mm) thick tempered glass. They lock into the floor only, and are available in brushed and polished stainless steel finishes.

This Locking Ladder Pull is supplied with our standard 7-pin Rim Cylinder with Interchangeable Core that can be used as the final cylinder or as a temporary one, and is easily replaced. If staying with the 7-pin format, just remove the core, have it re-keyed, or replace it with a new one. A selection of 7-pin Cores are available. If proprietary 6-pin Cylinders are required, simply remove the entire Rim Cylinder provided and replace with the proper Rim Cylinder of your choice. This Ladder Pull will accept most standard manufactured Rim type cylinders.

NOTE: Glass fabrication is required. Push/Pull Indicators in complementary finishes and Dustproof Keepers are sold separately.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
