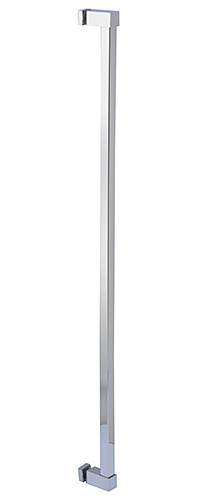

CRL Polished Stainless Single Sided Cut To Size Glass Mounted Square Ladder Style Pull Handle with Square Mounting Posts

Finish/Color : Polished Stainless Steel
Item #: SQC42PS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 5.6 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Stainless Single Sided Cut To Size Glass Mounted Square Ladder Style Pull Handle with Square Mounting Posts
×
CRL Polished Stainless Single Sided Cut To Size Glass Mounted Square Ladder Style Pull Handle with Square Mounting Posts
Quantity Standard Price Sale Price Your Price
CRL Polished Stainless Single Sided Cut To Size Glass Mounted Square Ladder Style Pull Handle with Square Mounting Posts Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles 8
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Valencia Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details
  • Diameter
    1-1/4 in. (32 mm)
  • Finish/Color:
    Polished Stainless Steel
  • Glazing Thickness
    3/8 in. To 3/4 in. (10 mm To 19 mm)
  • Material
    Stainless Steel
  • Mounting Hole Diameter
    5/8 in. (16 mm)
  • Mounting Type
    Single Sided
  • Overall Length
    43 in. (1092 mm)
Product Overview
  • Single Sided Handle You Cut to Size, Comes 43" (1092 mm) Overall Length
  • Square Mounting Posts
  • Use Monolithic Tempered Glass 3/8" to 3/4" (10 to 19 mm)

CRL Square Ladder Style Pull Handle-Single Sided are for glass mounting with supplied through-bolts. It is intended for use on doors made from 3/8" to 3/4" thick tempered glass. Stock size is 43" overall length and can be cut down per job specifications. The handle is constructed of 1" square stainless-steel tubing. Available in three standard finishes.



SPECIFICATIONS:
For Use With:
3/8" to 3/4" (10 to 19 mm) Tempered Glass
Construction:
1-1/4" (32 mm) Square Stainless Steel Posts
1" (25 mm) Square Stainless Steel Tubing Handle
43" (1092 mm) Overall Length to be Cut Down per Job Specifications.
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes

INCLUDES:
2 Each: Through-Bolts for Glass Mounting
1 Each: 1/8" Allen Wrench



NOTE:

Click Here to view our Our Back-to-Back Ladder Pulls in all available sizes and finishes.


Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
