CRL Brushed Stainless 36" Extra Length Left Handed "S" Ladder Style Back-to-Back Pull

Finish/Color : Brushed Stainless Steel
Brushed Stainless Steel
Item #: 36SLPBS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 6.614 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Stainless 36" Extra Length Left Handed "S" Ladder Style Back-to-Back Pull
×
CRL Brushed Stainless 36" Extra Length Left Handed "S" Ladder Style Back-to-Back Pull
Quantity Standard Price Sale Price Your Price
CRL Brushed Stainless 36" Extra Length Left Handed "S" Ladder Style Back-to-Back Pull Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 5/9/2024
Dallas, Texas In Other Service Center
Chicago (Elgin), Illinois In Other Service Center
San Francisco/Oakland (Union City), California In Other Service Center
Atlanta, Georgia In Other Service Center
New York Area (Secaucus, New Jersey) In Other Service Center
Boston (Taunton), Massachusetts In Other Service Center
Orlando, Florida In Other Service Center
Denver, Colorado In Other Service Center
Seattle (Kent), Washington In Other Service Center
Cleveland (Solon), Ohio In Other Service Center
Philadelphia Area (Moorestown, New Jersey) In Other Service Center
Phoenix, Arizona In Other Service Center
Las Vegas, Nevada In Other Service Center
Houston, Texas In Other Service Center
Miami, Florida In Other Service Center
San Diego, California In Other Service Center
Carolinas and Virginia, South Carolina In Other Service Center
Product details
  • Diameter
    1-1/4 in. (32 mm)
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/8 in. To 3/4 in. (10 mm To 19 mm)
  • Material
    Stainless Steel
  • Mounting Center To Center
    24 in. (610 mm)
  • Mounting Hole Diameter
    5/8 in. (16 mm)
  • Mounting Type
    Back-To-Back
  • Overall Length
    36 in. (914 mm)
Product Overview
  • Three Sizes in Two Popular Finishes for 3/8" to 3/4" (10 to 19 mm) Glass
  • Designer Left and Right Hand Models Available
  • 1-1/4" (32 mm) Diameter Heavy Wall 304 Alloy Stainless Steel Tubing
  • Custom Finishes and Sizes Available

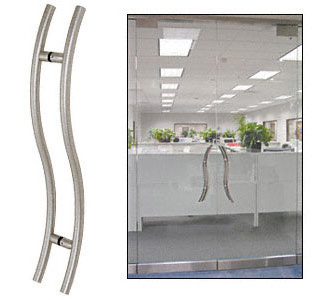

CRL "S" Style Ladder Pull Handles are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" (10 to 19 mm) thick tempered glass. Stock sizes range from 24" to 48" (610 mm to 1.22 m) overall height. Standard finishes are polished stainless and brushed stainless. The Pulls are handed left and right to ensure the exposed set-screws are always on the interior side of the door. Handing is determined from the exterior side looking in.

Custom sizes and finishes are available to meet architectural specifications. For additional information or to begin the custom design process, contact CRL Technical Sales Department.

SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1-1/4" (32 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes

Product Warning:

This handle is "handed" and the opposite handed pull will be needed for pairs of doors. For single sided Ladder Pulls, please contact CRL Technical Department.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
