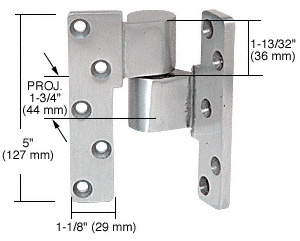

CRL Aluminum 3/4" Offset Intermediate Right Hand Pivot

Finish/Color : Aluminum
Item #: 41J190R628
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 14.72 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Aluminum 3/4" Offset Intermediate Right Hand Pivot
CRL Aluminum 3/4" Offset Intermediate Right Hand Pivot
Quantity Standard Price Sale Price Your Price
CRL Aluminum 3/4" Offset Intermediate Right Hand Pivot Stock
Los Angeles, California 314
Dallas, Texas 5
Chicago (Elgin), Illinois 13
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia 35
New York Area (Secaucus, New Jersey) 4
Boston (Taunton), Massachusetts 1
Orlando, Florida 7/30/2024
Denver, Colorado 1
Seattle (Kent), Washington 7/30/2024
Cleveland (Solon), Ohio 7/29/2024
Philadelphia Area (Moorestown, New Jersey) 7/26/2024
Phoenix, Arizona 4
Las Vegas, Nevada 5
Houston, Texas 5
Miami, Florida 2
San Diego, California 7/24/2024
Carolinas and Virginia, South Carolina 7/30/2024
Product details
  • Finish/Color:
  • Handing
    Right Hand
  • Material
  • Pivot Type
    Offset Intermediate
  • Recommended Door Type
    Aluminum Store Front
  • Vertical Adjustment
Product Overview
  • Intended For Use with Aluminum Storefront Doors to Maintain Door Alignment
  • Fully Retractable Pin with 5/8" Vertical Adjustment
  • Full Race Ball-Bearing and Oilite Bushing

The Jackson® J190 Intermediate 3/4" Offset Pivots are designed to be used with standard 1-3/4" (44 mm) storefront aluminum doors to maintain door alignment. They are not intended to be load-bearing pivots. These Intermediate Pivots are handed and are a full-mortise type. They feature a full race ball-bearing and oilite bronze bushing for a long maintenance free life. These pivots allow for a 5/8" (16 mm) vertical adjustment and feature a fully retractable pin for easy installation. These pivots are templated for use with new or retrofit applications.

Product Warning:

These Pivots maintain door alignment when used with doors 90" (2.29 m) or taller. Each additional 30" (762 mm), or fraction thereof, warrants the use of an additional intermediate Pivot.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
