- C-75 AAMA Rated Casement Windows and Project-In top vent

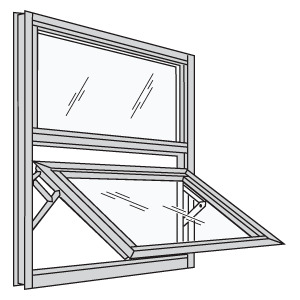

- CW-75 AAMA Rated for Project-Out bottom vent
- C-90 AAMA Rated for Fixed Windows
- Thermally Broken System for 1" Glazing
All window units are built for dry glaze with tape at the outside and E.P.D.M. elastomeric wedge at the inside. Vent construction is accomplished with tubular members, mitered and reinforced with an extruded aluminum corner key, and hydraulically crimped.
Operating Hardware Includes: Standard 4-Bar Stainless Steel Hinges and Cam Locking Handle.
Operating Hardware Includes: Stainless steel 4-bar hinges, and cam locking handles
Optional Hardware Includes: 90 degree 4-bar stainless steel hinge (for egress), 5 knuckle butt hinges, roto operator, limit device, friction adjuster, lift handle lock, access control lock, screens, wicket box
Optional Extrusions Include: Head and jamb channels, mulling bars, subsills, corners, nail fin adapters, extruded sill flashing.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
