CRL-U.S. Aluminum Custom KYNAR® Paint Custom Pair Series 250T Narrow Stile Geared Hinge Thermal Entrance Doors for Surface Mount Door Closers

Finish/Color : Custom Kyna Paint
Item #: 1D22871
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Pair

Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-U.S. Aluminum Custom KYNAR® Paint Custom Pair Series 250T Narrow Stile Geared Hinge Thermal Entrance Doors for Surface Mount Door Closers
×
CRL-U.S. Aluminum Custom KYNAR® Paint Custom Pair Series 250T Narrow Stile Geared Hinge Thermal Entrance Doors for Surface Mount Door Closers
Quantity Standard Price Sale Price Your Price
CRL-U.S. Aluminum Custom KYNAR® Paint Custom Pair Series 250T Narrow Stile Geared Hinge Thermal Entrance Doors for Surface Mount Door Closers Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles Ask Us 1.800.421.6144
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details
  • Finish/Color:
    Custom Kynar
Product Overview
  • 4-5/16" (110 mm) Bottom Rail
  • 10" (254 mm) Bottom Rail Available to Comply with A.D.A. and Title 21 Applications
  • Custom Fabricated to Accept Optional Hardware Applications
  • Includes Active and Inactive Leaf with All Standard Hardware
  • Accommodates 1" (25 mm) Tempered Insulating Unit (Glass Not Included)

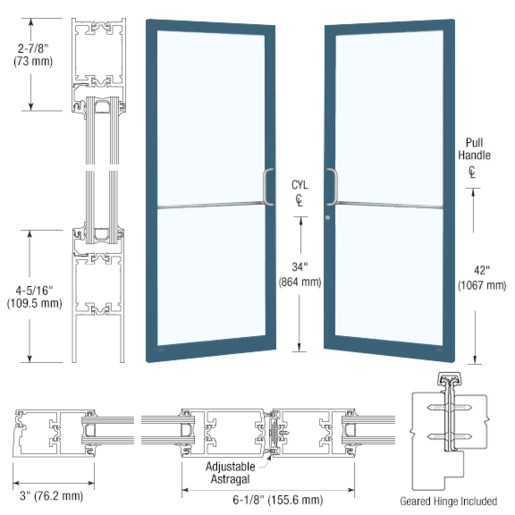

This CRL Custom Narrow Stile Entrance Door is built with 3" (76 mm) Stiles, 2-7/8" (73 mm) Top Rail, and 4-5/16" (110 mm) Bottom Rail. Standard features include stiles for Gear Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
