CRL-U.S. Aluminum White Painted Series DF800 Up/Over Sub Frame for a Single Door

Item #: FD71752
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-U.S. Aluminum White Painted Series DF800 Up/Over Sub Frame for a Single Door
×
CRL-U.S. Aluminum White Painted Series DF800 Up/Over Sub Frame for a Single Door
Quantity Standard Price Sale Price Your Price
CRL-U.S. Aluminum White Painted Series DF800 Up/Over Sub Frame for a Single Door Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles Ask Us 1.800.421.6144
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Valencia Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details
  • Finish/Color:
    White Kynar
Product Overview

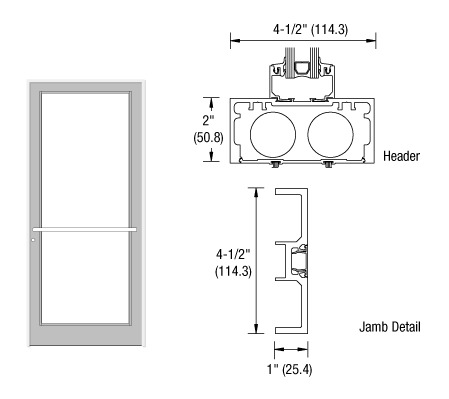

  • 1" x 4-1/2" (25 x 114 mm) Up/Over Frame with Open Back Jambs
  • For Center Hung Overhead Concealed Door Closer Applications
  • Built to Accommodate a Single Durafront Door
  • Threshold Included

CRL Complete Frame is built to accommodate a custom sized single Durafront Door that is center hung for use with an overhead concealed door closer. Constructed using TJ455/P050 Open Back Jambs with 1G457/P427 Header with weatherstrip, standard hardware, and included hardware preparations.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
