CRL-U.S. Aluminum Clear Anodized Class 1 74" x 86" Series DF800 Open Back Offset Pivot Up and Over Frame Complete (2F)

Finish/Color : Clear Anodized
Item #: FD72211
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-U.S. Aluminum Clear Anodized Class 1 74" x 86" Series DF800 Open Back Offset Pivot Up and Over Frame Complete (2F)
×
CRL-U.S. Aluminum Clear Anodized Class 1 74" x 86" Series DF800 Open Back Offset Pivot Up and Over Frame Complete (2F)
Quantity Standard Price Sale Price Your Price
CRL-U.S. Aluminum Clear Anodized Class 1 74" x 86" Series DF800 Open Back Offset Pivot Up and Over Frame Complete (2F) Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles Ask Us 1.800.421.6144
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details
  • Finish/Color:
    Clear Anodized Class 1
Product Overview

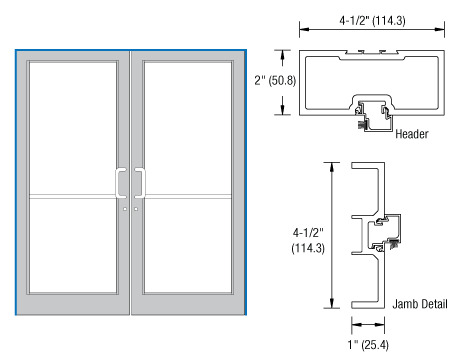

  • 1" x 4-1/2" (25.4 x 114.3 mm) Up and Over Frame with Open Back Jambs
  • 74" x 86" (1.9 x 2.2 m) Base Frame Size (Outside Dimensions)
  • 72" x 84" (1.8 x 2.1 m) Door Opening
  • Aluminum Threshold is Included

Complete Frame is built to accommodate a base 72" x 84" Offset Pivot Door for a Surface Mount Closer, constructed using TJ455 Open Back Jambs with 1H457 Header. Door stops, weatherstrip, standard hardware, and hardware preparations are included.

All fasteners, standard hardware and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
