CRL-U.S. Aluminum Clear Anodized Series 900 Terrace Door Transom Hinge Right Swing Out

Finish/Color : Clear Anodized
Item #: TND91511R0
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-U.S. Aluminum Clear Anodized Series 900 Terrace Door Transom Hinge Right Swing Out
×
CRL-U.S. Aluminum Clear Anodized Series 900 Terrace Door Transom Hinge Right Swing Out
Quantity Standard Price Sale Price Your Price
CRL-U.S. Aluminum Clear Anodized Series 900 Terrace Door Transom Hinge Right Swing Out Stock
Branch Location STOCK AVAILABILITY
Kent 0
Secaucus 0
Solon 0
Union City 0
Rock Hill 0
Hauppauge 0
San Diego 0
Atlanta 0
Orlando 0
Moorestown 0
Hamilton 0
Phoenix 0
Hazelwood 0
Los Angeles 0
Denver 0
Sunrise 0
Elgin 0
Taunton 0
Dallas 0
Tampa 0
Las Vegas 0
Valencia 0
Houston 0
Product Details
  • Finish/Color:
    Clear Anodized Class 1
Product Overview
  • 1" x 4-1/2" (25 x 144 mm) Transom Frame
  • Accepts 1" (25 mm) Insulating Glass
  • Thermally Broken Door and Transom Frame
  • Five-Point Locking Device
  • Standard Bottom Rail and Threshold for Swing Out Applications

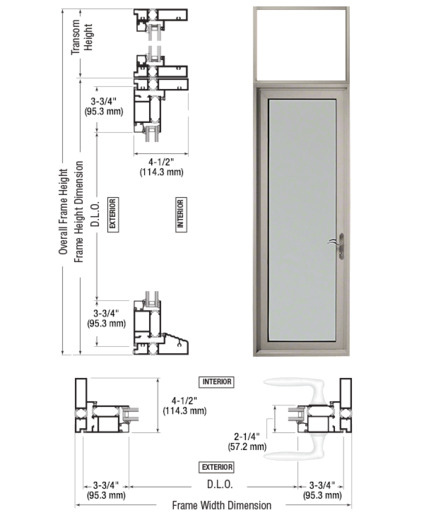

This CRL Series 900 Terrace Door Single Hinge Right Swing Out Transom is built with 1" x 4-1/2" (25 x 114.3 mm) Frame, 2-1/4" (57.2 mm) Thick Door, 3.75" (95 mm) Stiles, 3.75" (95 mm) Top Rail, 3-3/4" (95 mm) Bottom Rail, and Standard Threshold. Standard features include stiles for Butt Hinge hardware, glass stops for 1" (25 mm) tempered glass (by others), and Five-Point Locking Hardware.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
