CRL-U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Door Transom Hinge Right Swing Out

Finish/Color : Black Bronze Anodized
Item #: TND91522R0
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL-U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Door Transom Hinge Right Swing Out
×
CRL-U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Door Transom Hinge Right Swing Out
Quantity Standard Price Sale Price Your Price
CRL-U.S. Aluminum Class I Bronze Black Anodized Series 900 Terrace Door Transom Hinge Right Swing Out Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles Ask Us 1.800.421.6144
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details
  • Finish/Color:
    Black Bronze Anodized Class 1
Product Overview
  • 1" x 4-1/2" (25 x 144 mm) Transom Frame
  • Accepts 1" (25 mm) Insulating Glass
  • Thermally Broken Door and Transom Frame
  • Five-Point Locking Device
  • Standard Bottom Rail and Threshold for Swing Out Applications

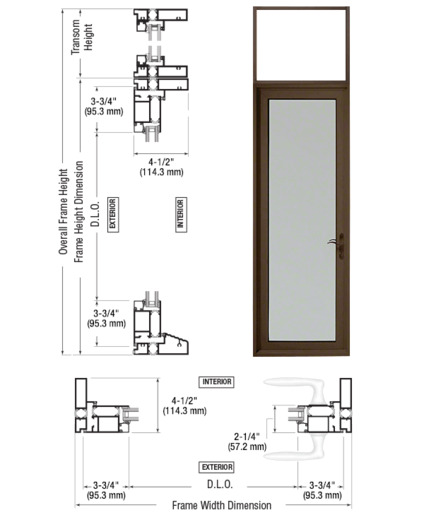

This CRL Series 900 Terrace Door Single Hinge Right Swing Out Transom is built with 1" x 4-1/2" (25 x 114.3 mm) Frame, 2-1/4" (57.2 mm) Thick Door, 3.75" (95 mm) Stiles, 3.75" (95 mm) Top Rail, 3-3/4" (95 mm) Bottom Rail, and Standard Threshold. Standard features include stiles for Butt Hinge hardware, glass stops for 1" (25 mm) tempered glass (by others), and Five-Point Locking Hardware.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
