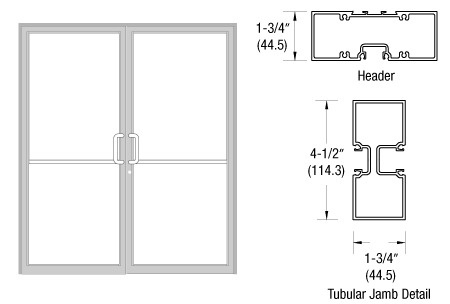

• 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Gear Hinge Up and Over Frame with Tubular Jambs
• 75-1/2" x 85-3/4" (1.9 x 2.2 m) Base Frame Size (Outside Dimensions)
• 72" x 84" (1.8 x 2.1 m) Door Opening
• Aluminum Threshold is Included

Complete Frame is built to accommodate a base 72" x 84" Gear Hinge Concealed Vertical Rod Panic Door for a Surface Mount Closer, constructed using 1S456 Tubular Jambs with 1S467 Header. All associated extrusions, weatherstrip, standard hardware, and hardware preparations are included.

All assembly fasteners, standard hardware, and hardware fabrication is included. Customer supplies fasteners to attach frame to opening. No modifications are offered on Standard Frames.
