CRL Matte Black Deluxe 180 Degree Serenity Series Sliding System

Item #: SER78MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 9.26 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Deluxe 180 Degree Serenity Series Sliding System
×
CRL Matte Black Deluxe 180 Degree Serenity Series Sliding System
Quantity Standard Price Sale Price Your Price
CRL Matte Black Deluxe 180 Degree Serenity Series Sliding System Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 1195
Dallas, Texas 51
Chicago (Elgin), Illinois 11
San Francisco/Oakland (Union City), California 32
Atlanta, Georgia 175
New York Area (Secaucus, New Jersey) 87
Boston (Taunton), Massachusetts 37
Orlando, Florida 25
Denver, Colorado 33
Seattle (Kent), Washington 7
Cleveland (Solon), Ohio 5
Philadelphia Area (Moorestown, New Jersey) 57
Phoenix, Arizona 50
Las Vegas, Nevada 22
Houston, Texas 13
Miami, Florida 10
San Diego, California 7
Carolinas and Virginia, South Carolina 10
Product details
  • Design Style
    Squared
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Matte Black
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Length
    78-3/4 in. (2000 mm)
  • Material
    Stainless Steel
  • Maximum Door Weight
    88 lbs. (39.9 kg)
  • Maximum Door Width
    30 in. (762 mm)
  • Opening Style
    Slide
  • Roller Location
    Top
  • Series
    Serenity
Product Overview
  • System Features One Sliding Door and One Fixed Panel
  • Use Monolithic Tempered Glass
  • Specially Designed Roller Bearings for Quiet Door Movement
  • Fixed and Sliding Panels May Be Reversed for Installation
  • For 5/16" to 3/8" (8 to 10 mm) Thick Tempered Glass (Not Included)
  • U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately
  • Available in Several Architectural Finishes

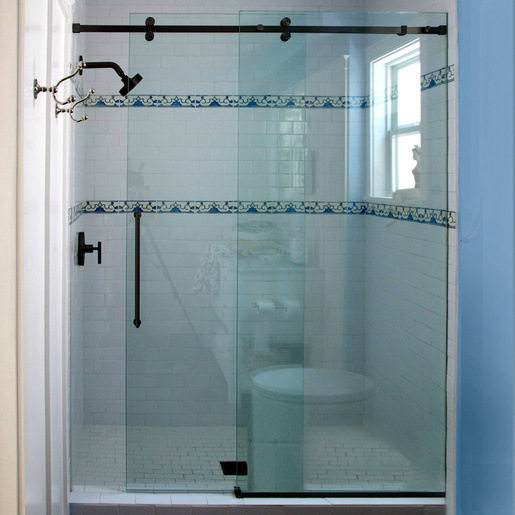

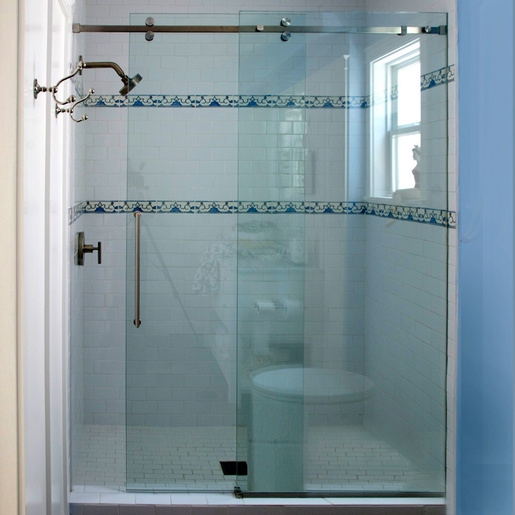

Our CRL Deluxe 180 Degree Serenity Series Sliding System has an entirely different look from traditional sliding systems. The use of minimal hardware provides a frameless look that gives the enclosure an almost floating appearance. Specially designed roller bearings allow for quiet and easy opening and closing of the door. One sliding panel and one fixed panel make the Deluxe Serenity Series both practical and beautiful.

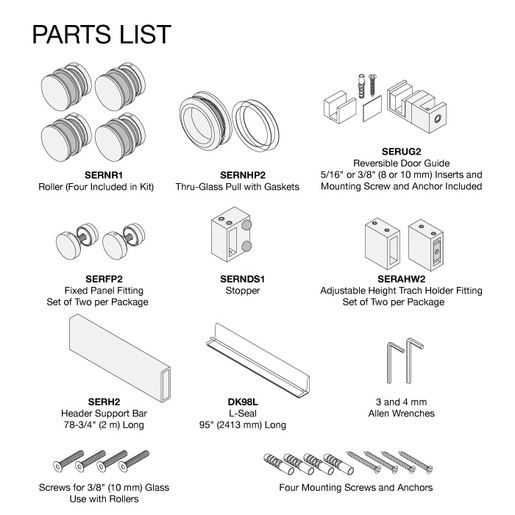

The Deluxe Kit Includes:

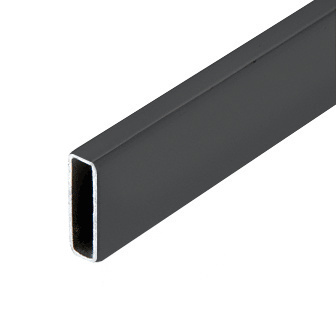

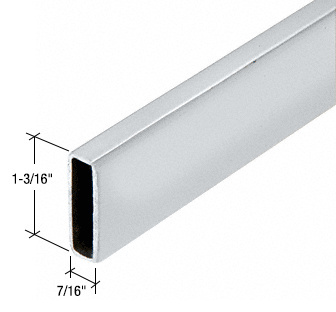

  • One - 78-3/4" (2 m) Length Header Bar
  • Four - Rollers

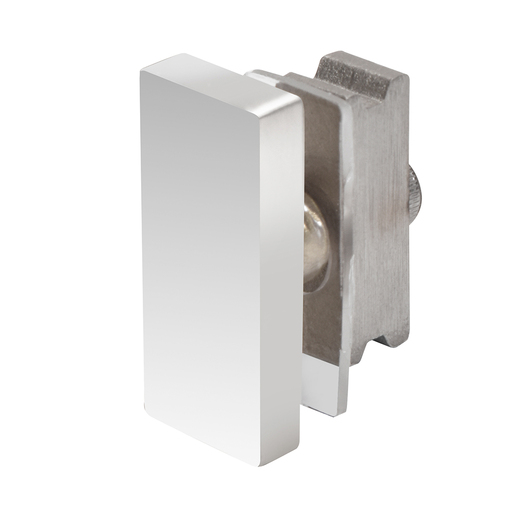

  • One - Stopper

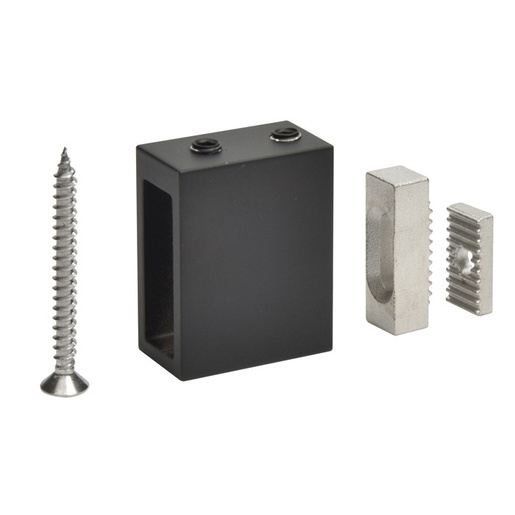

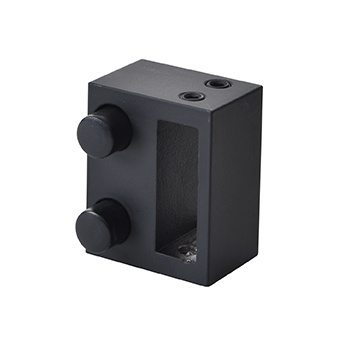

  • Two - Track Holder Fittings for Wall

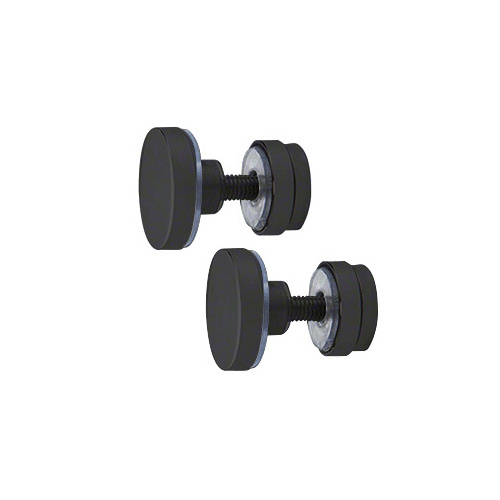

  • Two - Track Holder Fittings for Fixed Panel

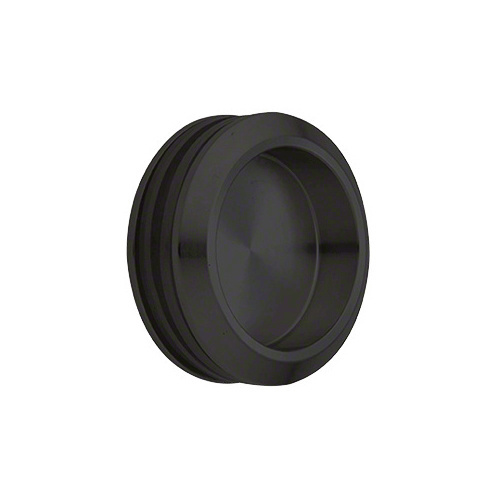

  • One - Thru-Glass Pull

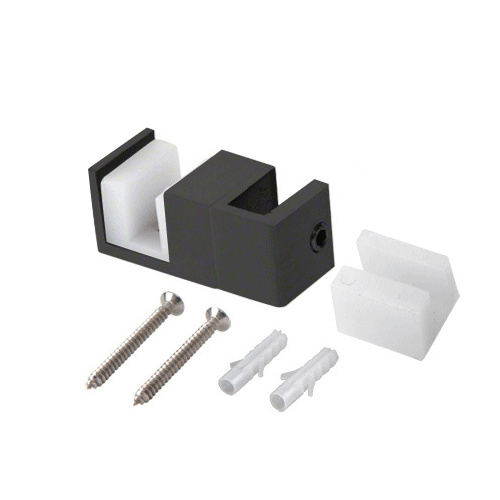

  • One - Door Guide

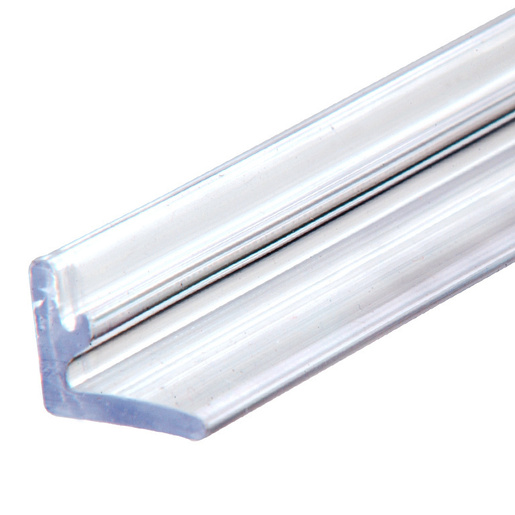

  • One - 85" (2.16 m) Clear L-Jamb

    SPECIFICATIONS:
  • Glass Thickness Range: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass (Not Included)
  • Material: Stainless Steel
  • Maximum Door Size: Do Not Exceed Either 30" (762 mm) Wide or 88 Pounds (40 kg)
  • Fabrication: Holes Required in Both Door and Fixed Panel
    A 90 Degree Accessory Kit may be purchased separately for use with 90 degree return panels. Available in either polished stainless steel or brushed stainless steel, the Deluxe Serenity Series Sliding System will work with 3/8" or 5/16" (10 or 8 mm) thick tempered glass (not included). Do not exceed either 30" (762 mm) or 88 pounds (40 kg) for the door size. Glass fabrication is required in both the door and fixed panel.

    Product Warning:

    U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Technical References & CAD Drawings
