CRL Brushed Stainless Complete 180º Crescent Series Sliding System

Finish/Color : Brushed Stainless Steel
Substitutions: LS104BS
Item #: CRE78BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 14.9 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Stainless Complete 180º Crescent Series Sliding System
×
CRL Brushed Stainless Complete 180º Crescent Series Sliding System
Quantity Standard Price Sale Price Your Price
CRL Brushed Stainless Complete 180º Crescent Series Sliding System Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 1539
Dallas, Texas 74
Chicago (Elgin), Illinois 65
San Francisco/Oakland (Union City), California 11
Atlanta, Georgia 32
New York Area (Secaucus, New Jersey) 87
Boston (Taunton), Massachusetts 10
Orlando, Florida 9
Denver, Colorado 12
Seattle (Kent), Washington 27
Cleveland (Solon), Ohio 3
Philadelphia Area (Moorestown, New Jersey) 8
Phoenix, Arizona 20
Las Vegas, Nevada 8
Houston, Texas 13
Miami, Florida 10
San Diego, California 2
Carolinas and Virginia, South Carolina 46
Product details
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    1/2 in. (12 mm)
  • Length
    78 in. (1981 mm)
  • Material
    Stainless Steel
  • Maximum Door Height
    80 in. (2032 mm)
  • Maximum Door Weight
    100 lbs. (45.4 kg)
  • Maximum Door Width
    36 in. (914 mm)
  • Maximum Opening Width
    78
  • Roller Location
    Top
  • Series
    Crescent
Product Overview
  • System Features One Sliding Door and One Fixed Panel
  • Quality Roller Bearings Assure Quiet Door Movement
  • Circular Header and Rollers Provide Symmetrical Aesthetics
  • Polished Stainless, Brushed Stainless, and Matte Black Finishes
  • Handle or Knob for Door Glass Ordered Separately
  • Glass Clamps or U-Channel for Fixed Panel Ordered Separately
  • Accommodates 1/2" or 3/8" (12 or 10 mm) Thick Tempered
  • Safety Glass (Not Included)

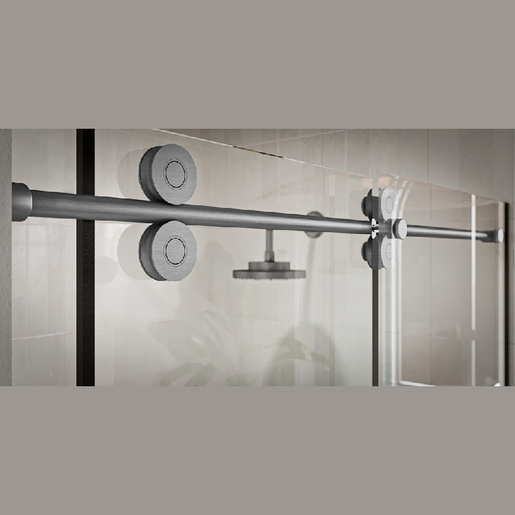

The circular shaped Header and the round Rollers of the Crescent Series Sliding Door System are the perfect complement to each other. They help provide a luxurious sliding shower door system and a soft décor. The use of minimal hardware lends itself to the popular modern sliding shower door systems by showing more glass, and less hardware. These quality Rollers assure quiet door travel, and make the door easy to slide. The Crescent Series Sliding System accommodates 1/2"or 3/8" (12 or 10 mm) thick tempered safety glass (not included), and the system allows that the fixed and sliding panels are reversible for installation as desired. The Crescent Series Sliding Door System is available in a choice of polished stainless steel, brushed stainless steel, or the new popular matte black finish.

Create a custom look with our black seals and black edge moldings sold separately. (View Here)

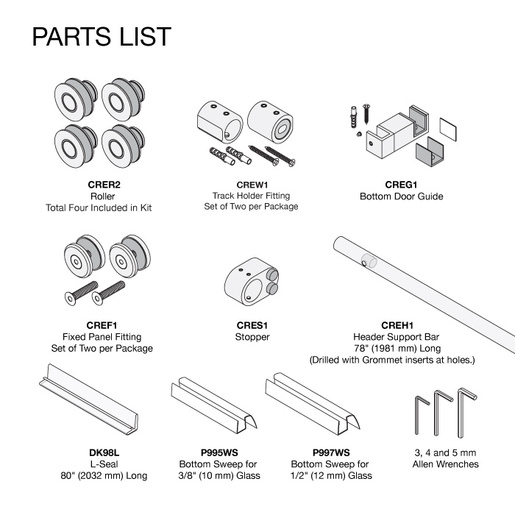

STANDARD 180 DEGREE KIT INCLUDES:

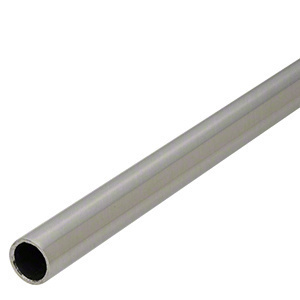

  • One - 78" (1981 mm) Length of Header Bar

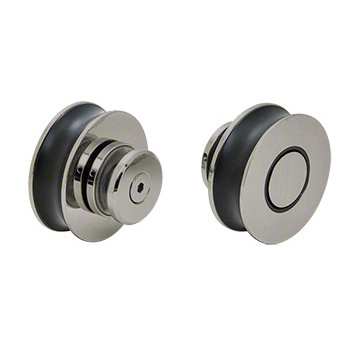

  • Four - Rollers

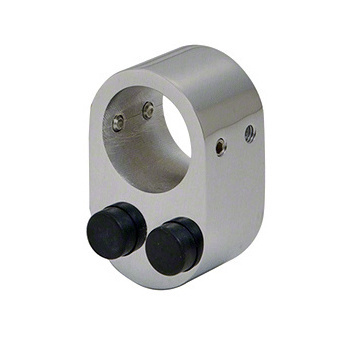

  • One - Stopper
  • Two - Wall Mount Fittings

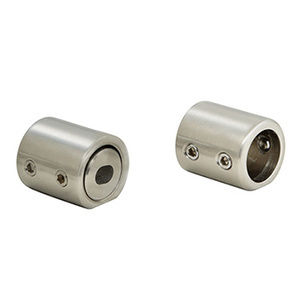

  • Two - Track Holder Fittings for Fixed Panel

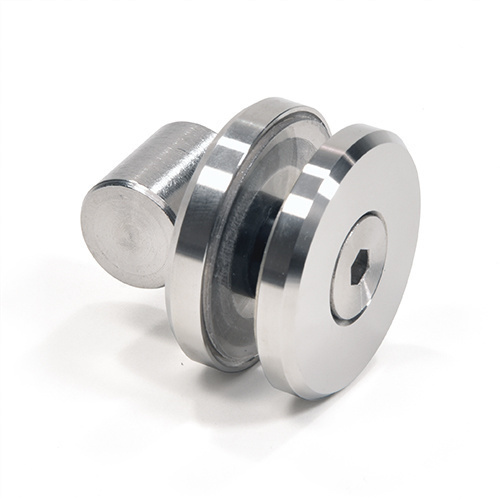

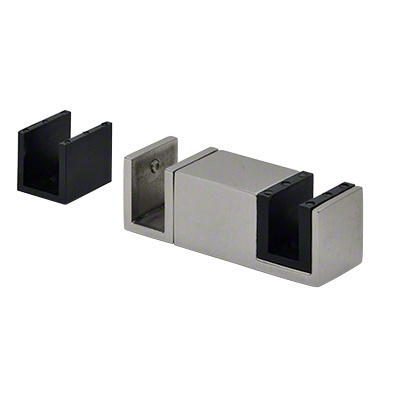

  • One - Bottom Guide (includes inserts for both 1/2" and 3/8" (12 and 10 mm) Glass)
  • Two - 40" (1016 mm) Bottom Sweeps with
  • Drip Rail (one for 3/8" (10 mm) and one for 1/2" (12 mm)

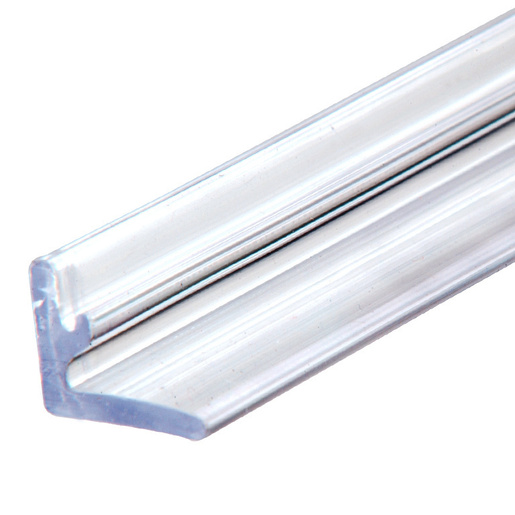

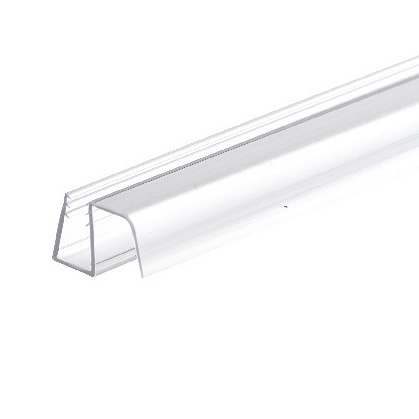

  • One - 80" (2032 mm) Clear L-Jamb

    NOTE: Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel.

    SPECIFICATIONS:
  • Material: Stainless Steel
  • Glass Thickness: 1/2" or 3/8" (12 or 10 mm) - Not Included
  • Maximum Door Size: 36" (914 mm) wide or 100 lbs (45 kg) - Do not exceed either width or weight.
  • Glass Fabrication Required for Both Door and Fixed Panel

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
