CRL Matte Black Standard 180 Degree Contempo Kit

Finish/Color : Matte Black
Substitutions: C0N73BS
Item #: C0N73MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 10.0 Pounds
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Standard 180 Degree Contempo Kit
×
CRL Matte Black Standard 180 Degree Contempo Kit
Quantity Standard Price Sale Price Your Price
CRL Matte Black Standard 180 Degree Contempo Kit Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 28
Dallas, Texas 1
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia 1
New York Area (Secaucus, New Jersey) 3
Boston (Taunton), Massachusetts 1
Orlando, Florida 1
Denver, Colorado 1
Seattle (Kent), Washington 4/9/2024
Cleveland (Solon), Ohio 1
Philadelphia Area (Moorestown, New Jersey) 4/5/2024
Phoenix, Arizona 1
Las Vegas, Nevada 4/4/2024
Houston, Texas 4/5/2024
Miami, Florida 4/9/2024
San Diego, California 1
Carolinas and Virginia, South Carolina 4/9/2024
Product details
  • Finish/Color:
    Matte Black
  • Glazing Thickness
    5/16 in. (8 mm)
  • Material
    Stainless Steel
  • Maximum Door Weight
    84 lbs. (38.1 kg)
  • Maximum Door Width
    37 in. (940 mm)
  • Roller Location
    Top
  • Series
    Contempo
Product Overview
  • Unique "I Beam" Header Style Adds Rigidity to Enclosure
  • Designed for Full Standing Showers or Above Bathtubs
  • Adjustable Height Header is Clad in Attractive Polished or Brushed Stainless Steel
  • Accommodates 5/16" (8mm) Thick Tempered Safety Glass (Not Included)

The NEW Contempo Series "I Beam" Bypass Sliding Shower Door System will be the focus of any bathroom in which it appears. Contempo has the flexibility to be installed either in a full standing shower, or above a bathtub. The Header is clad in polished or brushed stainless steel to present an elegant appearance. The Contempo Series has two stainless steel rollers per door to assure a smooth, gliding opening and closing of the bypassing doors using only fingertip control. The “adjustable height" header is the installer’s friend, allowing wiggle room for installation. Complete kits include: 73" (1854 mm) length header; 4 each rollers; 2 each stoppers; 2 track holder fittings for the wall; 1 each bottom guide; 85" (2159 mm) clear L-Jambs; 1 each 73" (1854 mm) threshold. The Contempo Series Sliding System accommodates 5/16"  (8 mm) thick tempered safety glass (not included). A 90 Degree Accessory Kit is available for enclosures with a return panel.


SPECIFICATIONS:
Glass Thickness: 5/16" ( 8 mm) - Not Included
Material: Stainless Steel "Cladded" Header
Maximum Door Size: 37" (940 mm) Wide or 84 Pounds (38 kg) for Each Door - Do Not Exceed Either Width or Weight
Glass Fabrication Required: One 1/2" (12 mm) Diameter Hole Per Hanger

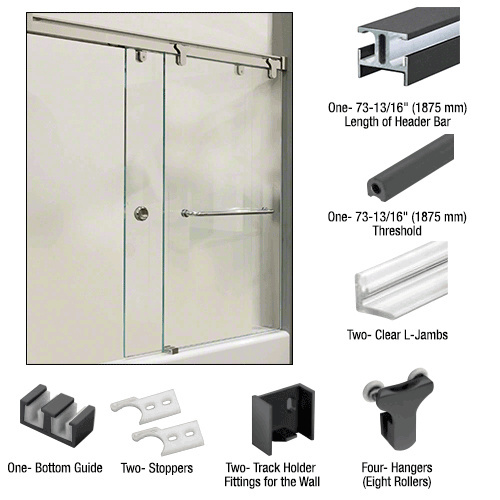

STANDARD 180 DEGREE KIT INCLUDES:
One - 73" (1854 mm) Length "I Beam" Header Bar
Four - Hangers
Two - Stoppers
Two - Track Holder Fittings for the Wall
One - Bottom Guide
Two - 85" (2159 mm) Clear L-Jambs
One - 73" (1854 mm) Threshold

Product Warning:

Please order handle or towel bars separately

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
