CRL Matte Black Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 3/8" to 1/2" Thick Glass

text.skipToContent text.skipToNavigation

More Choices

Click Image To Enlarge

CRL Matte Black Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 3/8" to 1/2" Thick Glass

Finish/Color : Matte Black

Matte Black

Item #: SUP10MBL

View Prices with a Purchase Account

Minimum Order Quantity : 1

Unit of Measure : each

Where to buy

View Technical References

Shipping Weight : 2.86 Pounds

Shipping Limitations : None

Compliance and Restrictions

Warning Reproductive Harm - www.p65warnings.ca.gov

CRL Matte Black Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 3/8" to 1/2" Thick Glass

❮

❯

CRL Matte Black Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 3/8" to 1/2" Thick Glass

Quantity	Standard Price	Sale Price	Your Price

CRL Matte Black Frameless Shower Door Fixed Panel Wall-To-Glass Support Bar for 3/8" to 1/2" Thick Glass Stock

Branch Location	State	STOCK AVAILABILITY
Kent	Washington	Est. Availability 2026-06-11
Saint Peters	Missouri	4
Secaucus	New Jersey	14
Solon	Ohio	2
Union City	California	2
Rock Hill	South Carolina	4
Hauppauge	New York	Ask Us 1.800.421.6144
San Diego	California	Ask Us 1.800.421.6144
Atlanta	Georgia	11
Orlando	Florida	5
Moorestown	New Jersey	2
Phoenix	Arizona	29
Los Angeles	California	289
Denver	Colorado	6
Sunrise	Florida	6
Elgin	Illinois	2
Taunton	Massachusetts	2
Fairfield	Ohio	4
Dallas	Texas	8
Tampa	Florida	2
Las Vegas	Nevada	4
Houston	Texas	3

Product Details Product Overview Technical References & CAD Drawings

Construction

Tubular
Diameter

3/4 in. (19 mm)
Finish/Color:

Matte Black
Glazing Thickness

3/8 in. To 1/2 in. (10 mm To 12 mm)
Length

39 in. (991 mm)
Material

Brass

May be Used as an Alternative to CRL Header Kits to Secure Fixed Panels and Provide Safety
Use Monolithic Tempered Glass
Wall-to-Glass and Glass-to-Glass Models Available
Simply Cut to Size to Accommodate Individual Configurations
No Hole Drilling Required
51" (1.3m) Options Available

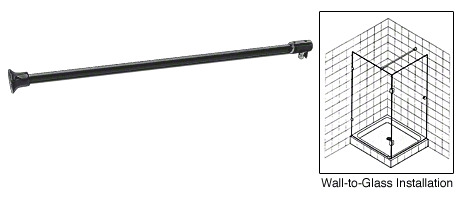

These CRL Fixed Panel Support Bars stabilize fixed panels of glass in enclosures that do not go all the way up to the ceiling. The Wall-to-Glass Bar has a bell-shaped clamping device on the wall side, and a solid brass end cap with a swiveling U-shaped receptacle to secure the fixed glass panel. The Glass-to-Glass Bar has solid brass end caps with swiveling U-shaped receptacles on both ends to secure each fixed panel. Nylon-tipped set screws secure the glass and prevent glass-to-metal contact. Bars are available in two lengths, and in sizes to secure 1/4" to 1/2" (6 to 12 mm) thick glass. Finishes are available to match most of our hinges, knobs, and pull handles. No holes or cut-outs are required in the glass.

SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Tubular Brass Bar, Solid Brass Fittings
Bar Lengths: 39" (1 m)
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Includes: All Required Mounting Hardware

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
