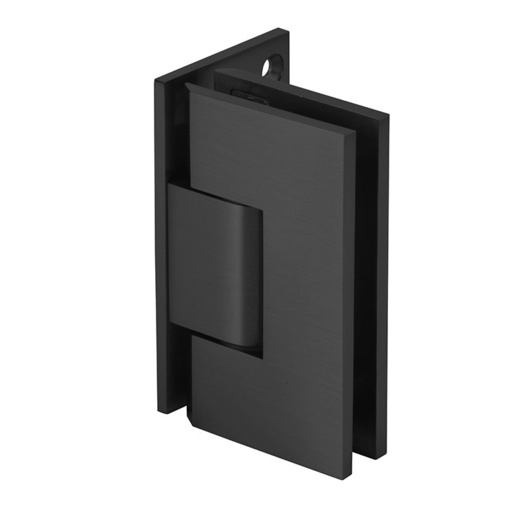

CRL Matte Black Vienna Adjustable Wall Mount Offset Back Plate Hinge

Finish/Color : Matte Black
Item #: V1E344MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.11 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Vienna Adjustable Wall Mount Offset Back Plate Hinge
×
Video
CRL Matte Black Vienna Adjustable Wall Mount Offset Back Plate Hinge
Quantity Standard Price Sale Price Your Price
CRL Matte Black Vienna Adjustable Wall Mount Offset Back Plate Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 150
Dallas, Texas 3
Chicago (Elgin), Illinois 3
San Francisco/Oakland (Union City), California 7
Atlanta, Georgia 6/17/2025
New York Area (Secaucus, New Jersey) 2
Boston (Taunton), Massachusetts 6/23/2025
Orlando, Florida 6/24/2025
Denver, Colorado 6/24/2025
Seattle (Kent), Washington 5
Cleveland (Solon), Ohio 6/25/2025
Philadelphia Area (Moorestown, New Jersey) 6/27/2025
Phoenix, Arizona 6/19/2025
Las Vegas, Nevada 6/20/2025
Houston, Texas 5
Miami, Florida 6/25/2025
San Diego, California 6/23/2025
Carolinas and Virginia, South Carolina 6/23/2025
Product Details
  • 5 Degree Pre-Set
    No
  • Adjustable
    Yes
  • Back Plate
    Offset
  • Design Style
    Squared
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Glazing Thickness
    3/8 in. to 1/2 in. (10 mm to 12 mm)
  • Height
    3-15/16 in. (100 mm)
  • Material
    Brass
  • Maximum Clamping Screw Torque
    60 lbf.in (677.9 cN.m)
  • Maximum Door Weight - 2 Hinges
    100 lbs. (45.4 kg)
  • Maximum Door Weight - 3 Hinges
    130 lbs. (59 kg)
  • Maximum Door Width - 1/2 Glass
    32 in. (813 mm)
  • Maximum Door Width - 3/8 Glass
    34 in. (864 mm)
  • Mounting Type
    Wall Mount
  • Opening Style
    Swing(side)
  • Pre-Applied Tape
    No
  • Self-Centering
    Yes
  • Series
    Vienna
  • Width
    2-5/16 in. (59 mm)
Product Overview
  • Adjustable up to 90 Degrees
  • Offset Wall Mount Plate for Clean Site Line
  • Available in Multiple Finishes

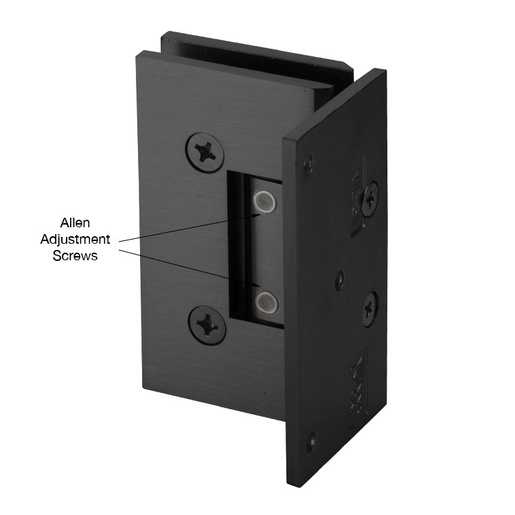

The Vienna Offset Wall Mount Plate Adjustable Hinge adjusts to accommodate desired angles up to 90 degrees. Simply loosen the Allen Screws on the rear of the hinge, position the door to the desired closing position, then re-tighten the Allen Screws. For best results, use with a strike jamb and position the door to push against the jamb for a snug close. Offset Wall Mount Plate leaves clean site line.



Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
