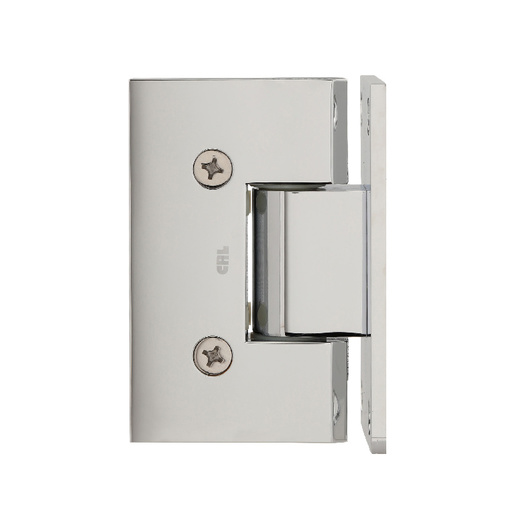

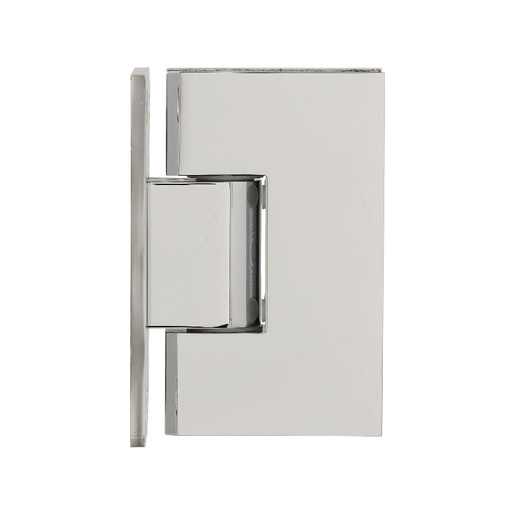

CRL Polished Chrome Victoria Series Wall Mount Full Back Plate Hinge

Item #: VCT037CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.9 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome Victoria Series Wall Mount Full Back Plate Hinge
×
CRL Polished Chrome Victoria Series Wall Mount Full Back Plate Hinge
Quantity Standard Price Sale Price Your Price
CRL Polished Chrome Victoria Series Wall Mount Full Back Plate Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 1000
Dallas, Texas 22
Chicago (Elgin), Illinois 18
San Francisco/Oakland (Union City), California 83
Atlanta, Georgia 46
New York Area (Secaucus, New Jersey) 88
Boston (Taunton), Massachusetts 21
Orlando, Florida 16
Denver, Colorado 7/30/2024
Seattle (Kent), Washington 23
Cleveland (Solon), Ohio 26
Philadelphia Area (Moorestown, New Jersey) 10
Phoenix, Arizona 10
Las Vegas, Nevada 108
Houston, Texas 29
Miami, Florida 80
San Diego, California 34
Carolinas and Virginia, South Carolina 13
Product details
  • 5 Degree Pre-Set
    No
  • Adjustable
    No
  • Back Plate
    Full
  • Finish/Color:
    Polished Chrome
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
  • Height
    4-3/8 in. (111 mm)
  • Material
    Brass
  • Maximum Door Weight
    140 lbs. (63.5 kg)
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Victoria
  • Width
    2-15/16 in. (75 mm)
Product Overview
  • An Excellent Choice for Heavier, Wider Shower Doors
  • Integrated Safety Interlock Enhances Glass Panel Control
  • Wall Mount and 180 Degree Glass-to-Glass Models Available
  • For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Safety Glass

CRL Victoria Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.

NOTE: Do not use three hinges.

This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
