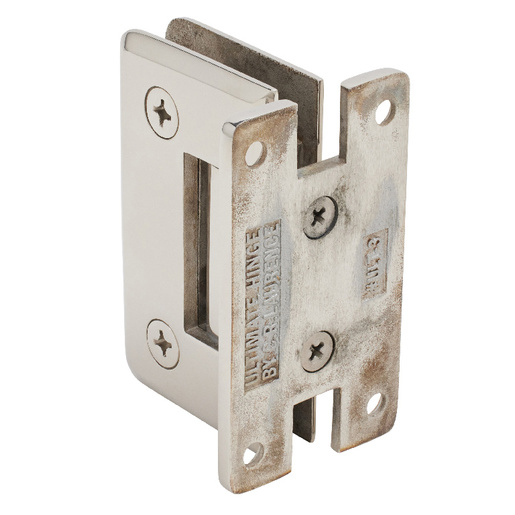

CRL 316 Polished Stainless Steel Ultimate 037 Series Wall Mount 'H' Back Plate Hinge

Finish/Color : Polished Stainless Steel
Polished Stainless Steel
Item #: ULT037PS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.4 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 316 Polished Stainless Steel Ultimate 037 Series Wall Mount 'H' Back Plate Hinge
×
CRL 316 Polished Stainless Steel Ultimate 037 Series Wall Mount 'H' Back Plate Hinge
Quantity Standard Price Sale Price Your Price
CRL 316 Polished Stainless Steel Ultimate 037 Series Wall Mount 'H' Back Plate Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 167
Dallas, Texas 7/2/2024
Chicago (Elgin), Illinois 2
San Francisco/Oakland (Union City), California 7/4/2024
Atlanta, Georgia 14
New York Area (Secaucus, New Jersey) 13
Boston (Taunton), Massachusetts 2
Orlando, Florida 7/2/2024
Denver, Colorado 7/2/2024
Seattle (Kent), Washington 2
Cleveland (Solon), Ohio 7/2/2024
Philadelphia Area (Moorestown, New Jersey) 7/5/2024
Phoenix, Arizona 7/4/2024
Las Vegas, Nevada 7/4/2024
Houston, Texas 7/2/2024
Miami, Florida 21
San Diego, California 7/1/2024
Carolinas and Virginia, South Carolina 2
Product details
  • 5 Degree Pre-Set
    No
  • Adjustable
    No
  • Back Plate
    'H'
  • Edge Profile
    Beveled
  • Finish/Color:
    Polished Stainless Steel
  • Glazing Thickness
    5/16 in. To 1/2 in. (8 mm To 12 mm)
  • Height
    3-1/2 in. (89 mm)
  • Material
    316 Stainless Steel
  • Maximum Door Weight - 2 Hinges
    90 lbs. (40.8 kg)
  • Maximum Door Weight - 3 Hinges
    130 lbs. (59 kg)
  • Maximum Door Width - 2 Hinges
    30
  • Maximum Door Width - 3 Hinges
    32
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Ultimate
  • Width
    2-1/8 in. (54 mm)
Product Overview
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Two Beautiful Finishes
  • 3 Year Warranty
  • Wall Mount
  • Use Monolithic Tempered Glass

The CRL Ultimate Series Hinge is named primarily for its combination of design elegance and service life. Featuring the same beautiful rounded corners and beveled edges of the Pinnacle Hinge, the Ultimate Hinge is constructed entirely of 316 stainless steel. This all-stainless construction gives the Ultimate Hinge a durability not usually found in brass hinges. The Ultimate has superior survivability in conditions of accelerated corrosion, such as seaside communities with high atmospheric salt levels. The Ultimate Hinge has stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure. It also has the same Reversible 5 degree Pivot Pin featured in our Geneva, Cathedral, Pinnacle, Roman, and Elite Series Hinges. A Custom Pivot Pin is available for "off-angle" installations.

STANDARD REVERSIBLE PIVOT PIN: Each Roman Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Roman Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 30" (762 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: 316 Stainless steel construction provides greater durability in conditions subject to accelerated corrosion, such as seaside communities with high atmospheric salt levels.
Construction: 316 Stainless Steel
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. For more information contact CRL Shower Door Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
