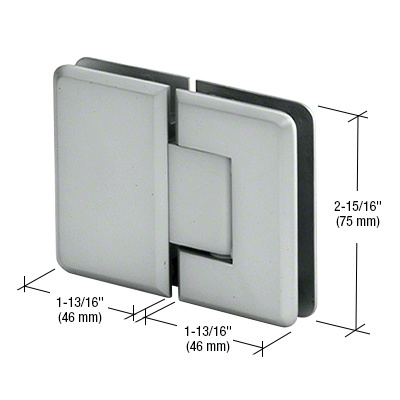

CRL Satin Chrome Trianon 180 Series 180 Degree Glass-to-Glass Hinge

 Limited stock available. This item will be discontinued. All sales are final.
Finish/Color : Satin Chrome
Satin Chrome
Item #: TR1180SC
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.585 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Chrome Trianon 180 Series 180 Degree Glass-to-Glass Hinge
×
CRL Satin Chrome Trianon 180 Series 180 Degree Glass-to-Glass Hinge
Quantity Standard Price Sale Price Your Price
CRL Satin Chrome Trianon 180 Series 180 Degree Glass-to-Glass Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 287
Dallas, Texas 6/25/2024
Chicago (Elgin), Illinois 6/25/2024
San Francisco/Oakland (Union City), California 6/20/2024
Atlanta, Georgia 6/24/2024
New York Area (Secaucus, New Jersey) 6/24/2024
Boston (Taunton), Massachusetts 6/28/2024
Orlando, Florida 6/25/2024
Denver, Colorado 6/25/2024
Seattle (Kent), Washington 6/25/2024
Cleveland (Solon), Ohio 6/25/2024
Philadelphia Area (Moorestown, New Jersey) 6/28/2024
Phoenix, Arizona 6/20/2024
Las Vegas, Nevada 6/20/2024
Houston, Texas 6/25/2024
Miami, Florida 6/25/2024
San Diego, California 6/24/2024
Carolinas and Virginia, South Carolina 6/25/2024
Product details
  • Edge Profile
    Beveled
  • Finish/Color:
    Satin Chrome
  • Glass To Glass Angle
    180
  • Glazing Thickness
    1/4 in. To 5/16 in. (6 mm To 8 mm)
  • Height
    2-15/16 in. (75 mm)
  • Material
    Brass
  • Maximum Door Weight - 2 Hinges
    62 lbs. (28.1 kg)
  • Maximum Door Weight - 3 Hinges
    92 lbs. (41.7 kg)
  • Maximum Door Width - 2 Hinges
    28
  • Maximum Door Width - 3 Hinges
    32
  • Mounting Type
    Glass To Glass
  • Width - Door Portion
    1-13/16 in. (46 mm)
  • Width - Sidelite Portion
    1-13/16
Product Overview
  • 180º Glass-to-Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes
  • 3 Year Warranty

CRL Trianon Hinges can be used to support 1/4" to 5/16" (6 to 8 mm) thick safety glass in swinging door installations. They feature radiused corners and beveled edges in seven decorator finishes. Trianon Hinges are constructed of solid brass with a self-centering mechanism for door alignment when within 15 degree of the center. They contain a Reversible Pivot Pin for optional 5 degree tighter door closure. Five distinct models include two Wall Mount styles, along with three Glass-to-Glass styles.

STANDARD REVERSIBLE PIVOT PIN: Each Trianon Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which allows 5 degree tighter closure into shower area. The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" to 5/16" (6 to 8 mm) Tempered Safety Glass
Special Features: Contains a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

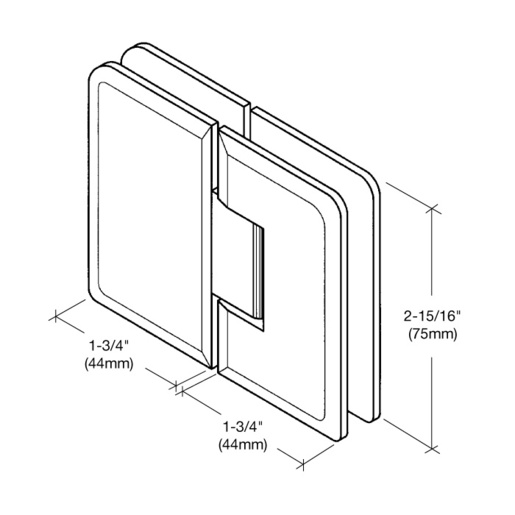

Technical References & CAD Drawings
