• Provides Alternative to Traditional Header System Use
• CRL Engineered Design Criteria Must Be Meet Before Using This Hinge
• Use Monolithic Tempered Glass
• Stocked in Six Popular Finishes, with Custom Finishes Available
• For use with 3/8" or 5/16" (10 or 8 mm) Thick Tempered Safety Glass
• Apply medium-strength threadlocker on cover plate screws

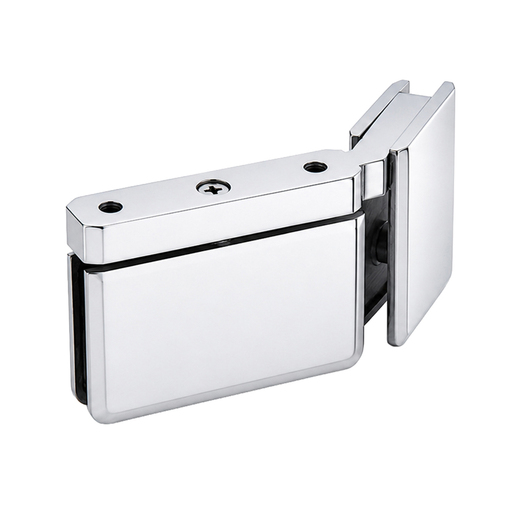

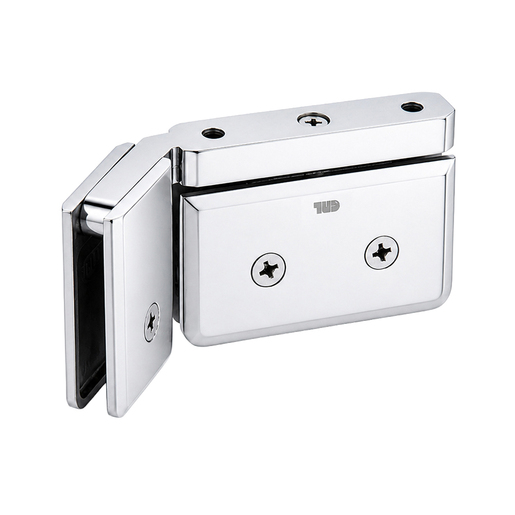

The combination of this CRL 135 Degree Prima Hinge with U-Clamp at the top of the enclosure allows the installer to mount a shower door next to an adjacent 135 degree fixed panel without a header. The same may be done at the bottom of the door, or a standard PPH01 Model may be used with the door, with a separate U-Clamp or U-Channel used at the bottom of the panel. Stocked in six popular finishes, and used with 3/8" or 5/16" (10 or 8 mm) thick tempered safety glass.


NOTE: See "Design Criteria" for guidelines and maximum sizes this hinge can be used with.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
