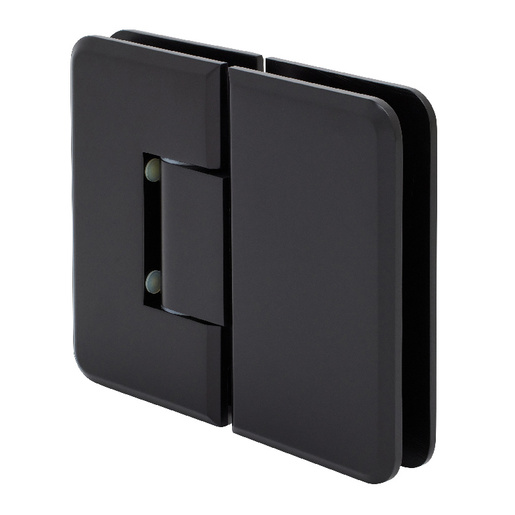

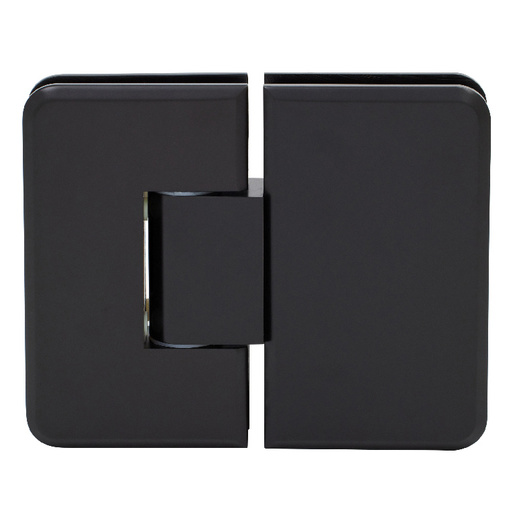

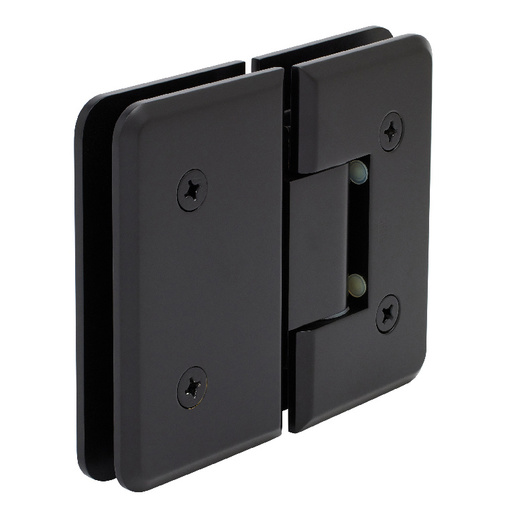

CRL Matte Black 180 Degree Glass-to-Glass Plymouth Series Hinge

 Discontinued item. All sales are final.
No longer available.
Item #: PLY180MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 4.312 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black 180 Degree Glass-to-Glass Plymouth Series Hinge
×
CRL Matte Black 180 Degree Glass-to-Glass Plymouth Series Hinge
Quantity Standard Price Sale Price Your Price
CRL Matte Black 180 Degree Glass-to-Glass Plymouth Series Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Edge Profile
    Beveled
  • Finish/Color:
    Matte Black
  • Glass To Glass Angle
    180
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
  • Height
    4-3/8 in. (111 mm)
  • Material
    Brass
  • Maximum Door Weight
    140 lbs. (63.5 kg)
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Glass To Glass
  • Self-Centering
    Yes
  • Series
    Plymouth
  • Width - Door Portion
    2-5/8 in. (67 mm)
  • Width - Sidelite Portion
    2-5/8
Product Overview
  • An Excellent Choice for Heavier, Wider Shower Doors
  • Integrated Safety Interlock Enhances Glass Panel Control
  • Wall Mount and 180 Degree Glass-to-Glass Models Available
  • For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass

CRL Plymouth Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.

NOTE: Do not use three hinges.

This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
