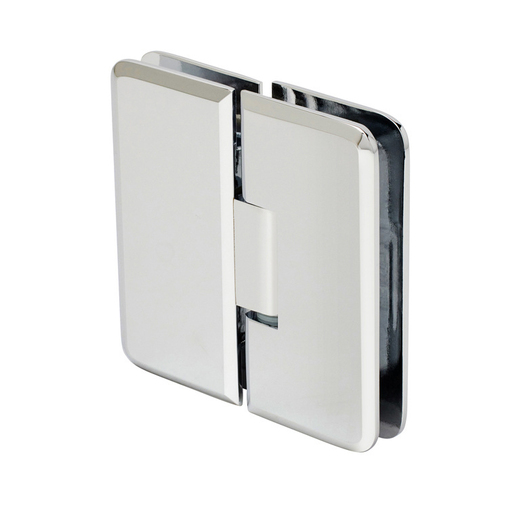

CRL Polished Chrome Petite 180 Series 180 Degree Glass-to-Glass Hinge

Finish/Color : Polished Chrome
Item #: PET180CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.73 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome Petite 180 Series 180 Degree Glass-to-Glass Hinge
×
CRL Polished Chrome Petite 180 Series 180 Degree Glass-to-Glass Hinge
Quantity Standard Price Sale Price Your Price
CRL Polished Chrome Petite 180 Series 180 Degree Glass-to-Glass Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Edge Profile
    Beveled
  • Finish/Color:
    Polished Chrome
  • Glass To Glass Angle
    180
  • Glazing Thickness
    1/4 in. To 5/16 in. (6 mm To 8 mm)
  • Height
    3-1/2 in. (89 mm)
  • Material
    Brass
  • Maximum Door Weight - 2 Hinges
    55 lbs. (24.9 kg)
  • Maximum Door Weight - 3 Hinges
    82 lbs. (37.2 kg)
  • Maximum Door Width - 2 Hinges
    31
  • Maximum Door Width - 3 Hinges
    34
  • Mounting Type
    Glass To Glass
  • Series
    Petite
  • Swing
    In Or Out
  • Width - Door Portion
    1-3/4 in. (44 mm)
  • Width - Sidelite Portion
    1-3/4
Product Overview
  • 180 Degree Glass-to-Glass (Door Swings 90 Degree In and 90 Degree Out)
  • Precise Closing Feature to Zero Degrees
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • Use Monolithic Tempered Glass

The CRL Petite Series provides a complete spectrum of Hinges for frameless shower doors using 1/4" (6 mm) to 5/16" (8 mm) tempered safety glass. Developed to allow virtually every application configuration, they deliver design freedom. The Petite Series includes three unique types: The PET044 Wall Mount Flush Back Plate Hinge allows for a clean exterior sight line by having all mounting screws inside the shower; the PET181 Glass-to-Glass Hinge is used to mount a door to a fixed panel in a 180 degree plane, and allows the door to swing in a complete 180 degree arc outwards; the PET182 Glass-to-Glass Hinge allows the door to swing in a complete 180 degree arc inwards. Petite Hinges have mitered edges with curved corners to provide an aesthetically pleasing look. Petite Hinges have 25% thicker plates than competitive Hinges, thereby reducing deflection and providing greater holding power.

Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).

Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (Except PET045, PET054, PET135, PET181, and PET182)
Closing Type: Precise Closing to 0 degree
Cut-Out Required (Except PET181 and PET182, which require holes only).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
