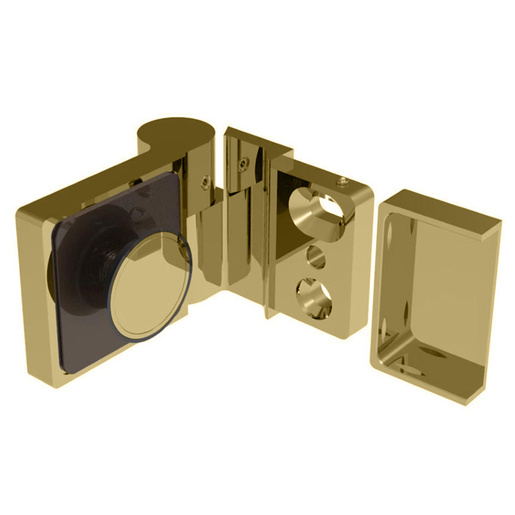

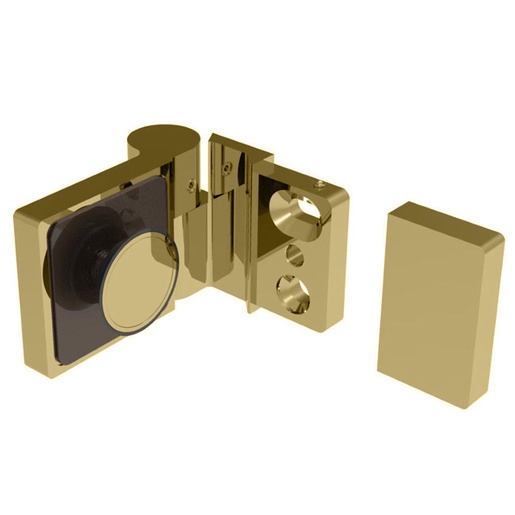

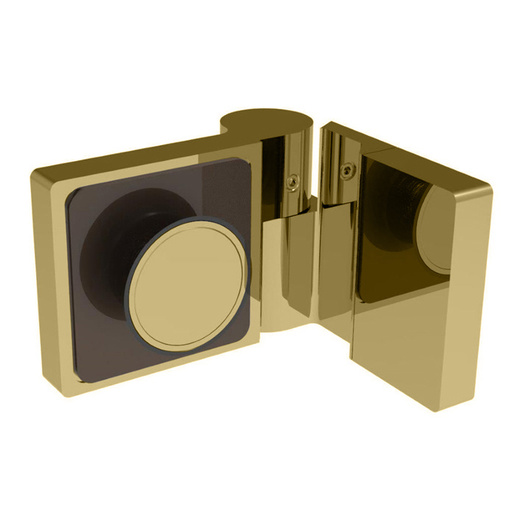

CRL Satin Brass Lugano Series Wall Mount Outswing Hinge - For Right Hand Door

Item #: LUG044LSB
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.115 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Brass Lugano Series Wall Mount Outswing Hinge - For Right Hand Door
×
Video
CRL Satin Brass Lugano Series Wall Mount Outswing Hinge - For Right Hand Door
Quantity Standard Price Sale Price Your Price
CRL Satin Brass Lugano Series Wall Mount Outswing Hinge - For Right Hand Door Stock
Branch Location STOCK AVAILABILITY
Kent 10
Secaucus 2
Solon Ask Us 1.800.421.6144
Union City 8
Rock Hill 1
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta 1
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles 79
Denver Ask Us 1.800.421.6144
Sunrise 5
Elgin 1
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston 5
Product Details
  • Back Plate
    Offset
  • Design Style
    Concealed/Premium
  • Edge Profile
    Square
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Satin Brass
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Handing
    Right Hand
  • Height
    1-31/32 in. (50 mm)
  • Material
    Brass
  • Maximum Door Weight
    99 lbs. (44.9 kg)
  • Maximum Door Width
    35 in. (889 mm)
  • Maximum Door Width - 2 Hinges
    35
  • Mounting Type
    Wall Mount
  • Opening Style
    Swing(side)
  • Series
    Lugano
  • Width
    1-31/32 in. (50 mm)
Product Overview
  • Rise and Fall action - 3/16 (5mm)
  • Sleek New Design
  • Works with 5/16 to 3/8 (8 to 10 mm) glass
  • Perfect for a Pitched Curb
  • Use with No Ledge for Wheelchair Accessibility
  • Flush Mount Inside - Easy to Clean Glass
  • Snap-on Covers Conceal Screws
  • Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.



Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
