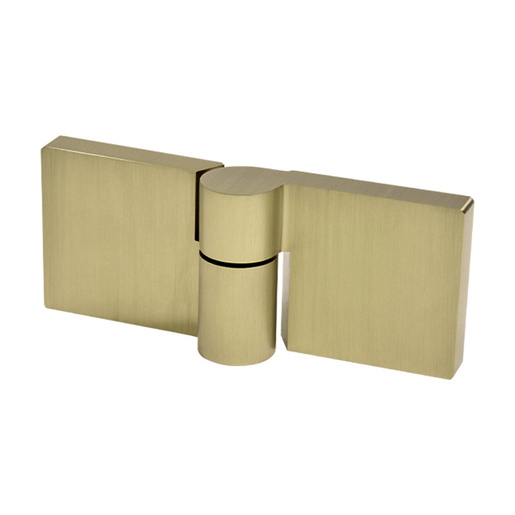

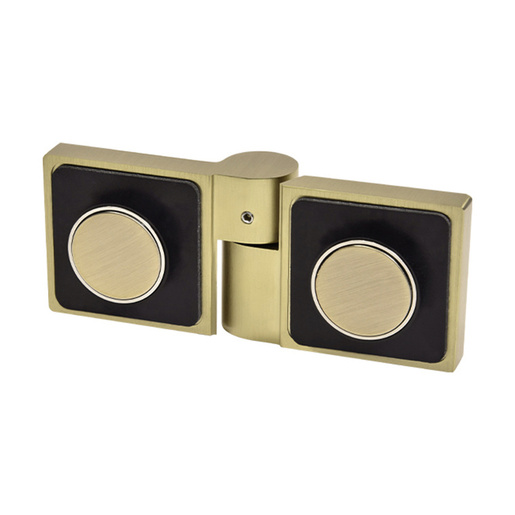

CRL Brushed Bronze Lugano Series Glass to Glass 180 Degree Hinge - For Right Hand Door

Finish/Color : Brushed Bronze
Item #: LUG180LBBRZ
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.205 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Bronze Lugano Series Glass to Glass 180 Degree Hinge - For Right Hand Door
×
Video
CRL Brushed Bronze Lugano Series Glass to Glass 180 Degree Hinge - For Right Hand Door
Quantity Standard Price Sale Price Your Price
CRL Brushed Bronze Lugano Series Glass to Glass 180 Degree Hinge - For Right Hand Door Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 56
Dallas, Texas 5
Chicago (Elgin), Illinois 5/9/2025
San Francisco/Oakland (Union City), California 5/8/2025
Atlanta, Georgia 5/6/2025
New York Area (Secaucus, New Jersey) 5/6/2025
Boston (Taunton), Massachusetts 5/6/2025
Orlando, Florida 5/13/2025
Denver, Colorado 5/6/2025
Seattle (Kent), Washington 8
Cleveland (Solon), Ohio 5/12/2025
Philadelphia Area (Moorestown, New Jersey) 5/9/2025
Phoenix, Arizona 5/8/2025
Las Vegas, Nevada 5/9/2025
Houston, Texas 5
Miami, Florida 5/14/2025
San Diego, California 5/7/2025
Carolinas and Virginia, South Carolina 5/12/2025
Product Details
  • Design Style
    Concealed/Premium
  • Edge Profile
    Square
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Brushed Bronze
  • Glass To Glass Angle
    180
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Handing
    Right Hand
  • Height
    1-31/32 in. (50 mm)
  • Material
    Brass
  • Maximum Door Weight
    99 lbs. (44.9 kg)
  • Maximum Door Width
    35 in. (889 mm)
  • Mounting Type
    Glass To Glass
  • Opening Style
    Swing(side)
  • Series
    Lugano
  • Width
    1-31/32 in. (50 mm)
Product Overview
  • Rise and Fall action - 3/16 (5mm)
  • Sleek New Design
  • For 5/16 to 3/8 (8 to 10 mm) tempered glass
  • Handles up to a 35" wide door using two hinges

The Lugano Series Hinge is sleek and modern. The unique design of this hinge is for 5/16 to 3/8 (8 to 10 mm) glass. All fasteners are concealed. The hinges are self-centering within 60° of the closed position. Using two hinges, a maximum door width of 35" and a maximum weight of 99 lb (44 kg.) can be achieved.


Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

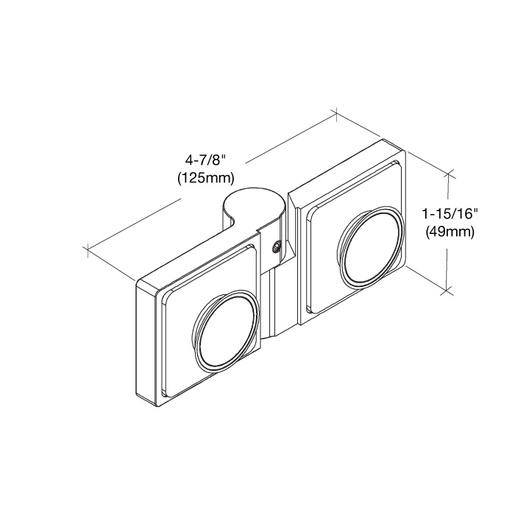

Technical References & CAD Drawings
