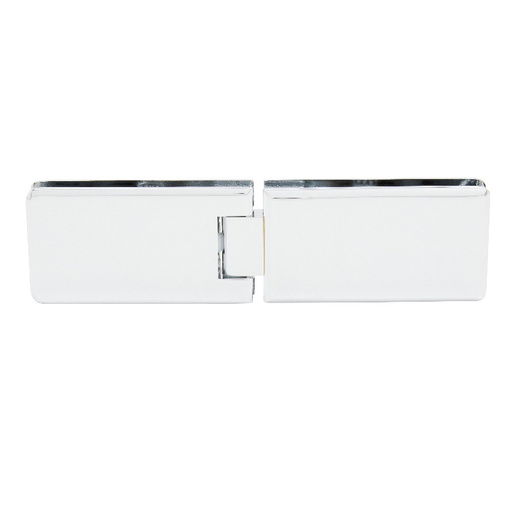

CRL Chrome Grande 180 Series 180 Degree Glass-to-Glass Hinge

Finish/Color : Polished Chrome
Polished Chrome
Substitutions: GRA380CH
Item #: GRA180CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.544 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Chrome Grande 180 Series 180 Degree Glass-to-Glass Hinge
×
CRL Chrome Grande 180 Series 180 Degree Glass-to-Glass Hinge
Quantity Standard Price Sale Price Your Price
CRL Chrome Grande 180 Series 180 Degree Glass-to-Glass Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California In Other Service Center
Dallas, Texas In Other Service Center
Chicago (Elgin), Illinois In Other Service Center
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia In Other Service Center
New York Area (Secaucus, New Jersey) In Other Service Center
Boston (Taunton), Massachusetts In Other Service Center
Orlando, Florida In Other Service Center
Denver, Colorado In Other Service Center
Seattle (Kent), Washington In Other Service Center
Cleveland (Solon), Ohio In Other Service Center
Philadelphia Area (Moorestown, New Jersey) In Other Service Center
Phoenix, Arizona In Other Service Center
Las Vegas, Nevada In Other Service Center
Houston, Texas In Other Service Center
Miami, Florida In Other Service Center
San Diego, California In Other Service Center
Carolinas and Virginia, South Carolina In Other Service Center
Product details
  • Adjustable
    No
  • Edge Profile
    Beveled
  • Finish/Color:
    Polished Chrome
  • Glass To Glass Angle
    180
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Height
    2-3/8 in. (60 mm)
  • Material
    Brass
  • Maximum Door Weight - 2 Hinges
    90 lbs. (40.8 kg)
  • Maximum Door Weight - 3 Hinges
    134 lbs. (60.8 kg)
  • Maximum Door Width - 2 Hinges
    31
  • Maximum Door Width - 3 Hinges
    34
  • Mounting Type
    Glass To Glass
  • Series
    Grande
  • Width - Door Portion
    4-1/4 in. (108 mm)
  • Width - Sidelite Portion
    4-1/4
Product Overview
  • Can be Side Mounted at Top and Bottom
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • 180º Glass-to-Glass

The CRL Grande Hinge incorporates a larger clamping surface to provide superior support for frameless shower doors. The beveled edges are an attractive accent to Grande's strong rectangular design, and the Offset Back Plate Wall Mount Model gives a clean exterior appearance. Grande Hinges can be mounted on the top and bottom corners of the door, or anywhere in between. Grande is constructed of solid brass for years of reliable service.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 31" (787 mm).

Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 134 lbs. (61 kg) with a maximum door width of 34" (864 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Grande can beside mounted at top and bottom corners of the door, or anywhere in between. Corner mounting allows more glass exposure.
Construction: Solid Brass
Hinge Swings: 90 Degree In and 90 Degree Out
Closing Type: Precise Closing to 0 Degree
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
