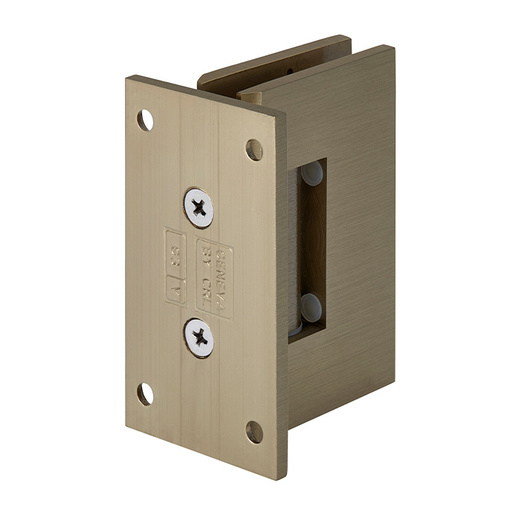

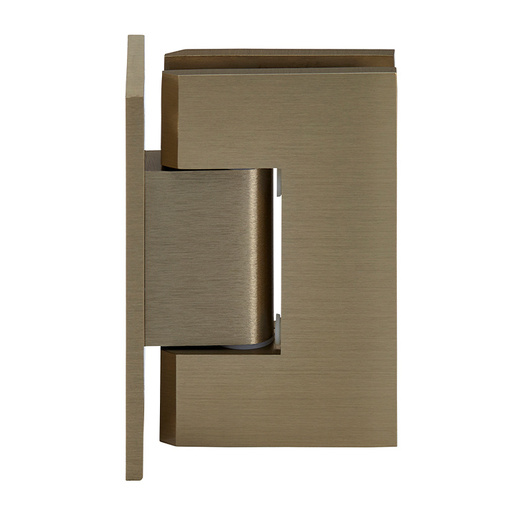

CRL Brushed Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
×
CRL Brushed Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge
Quantity Standard Price Sale Price Your Price
CRL Brushed Bronze Geneva 037 Series Wall Mount Full Back Plate Standard Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 3197
Dallas, Texas 53
Chicago (Elgin), Illinois 4/5/2024
San Francisco/Oakland (Union City), California 21
Atlanta, Georgia 95
New York Area (Secaucus, New Jersey) 27
Boston (Taunton), Massachusetts 21
Orlando, Florida 27
Denver, Colorado 31
Seattle (Kent), Washington 16
Cleveland (Solon), Ohio 39
Philadelphia Area (Moorestown, New Jersey) 28
Phoenix, Arizona 29
Las Vegas, Nevada 19
Houston, Texas 36
Miami, Florida 45
San Diego, California 18
Carolinas and Virginia, South Carolina 6
Product details
  • 5 Degree Pre-Set
    No
  • Adjustable
    No
  • Back Plate
    Full
  • Finish/Color:
    Brushed Bronze
  • Glazing Thickness
    5/16 in. To 1/2 in. (8 mm To 12 mm)

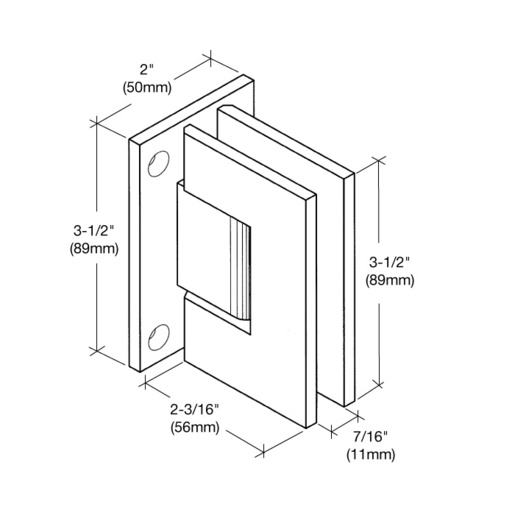

  • Height
    3-1/2 in. (89 mm)
  • Material
    Brass
  • Maximum Door Weight - 2 Hinges
    80 lbs. (36.3 kg)
  • Maximum Door Weight - 3 Hinges
    120 lbs. (54.4 kg)
  • Maximum Door Width - 2 Hinges
    28
  • Maximum Door Width - 3 Hinges
    32
  • Mounting Type
    Wall Mount
  • Self-Centering
    Yes
  • Series
    Geneva
  • Width
    2-3/16 in. (56 mm)
Product Overview
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Use Monolithic Tempered Glass
  • Available in Several Beautiful Finishes
  • Three Year Warranty
  • Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.

Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

Custom finishes are available on request. Contact Technical Sales Shower Door Division.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
