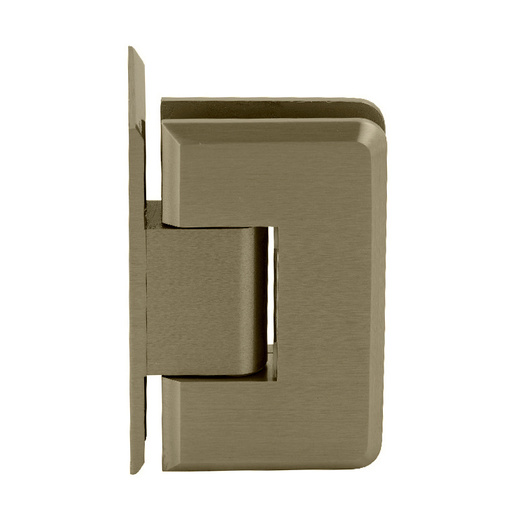

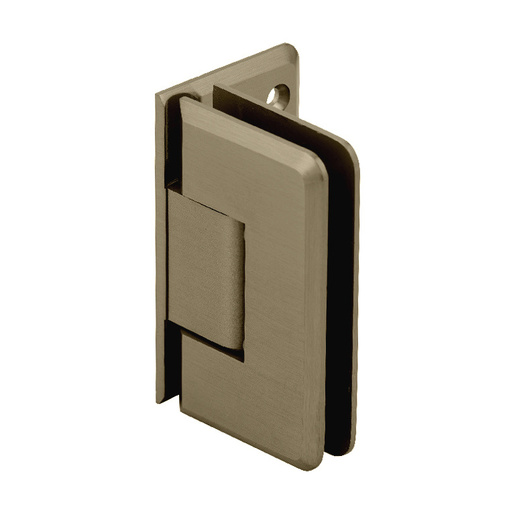

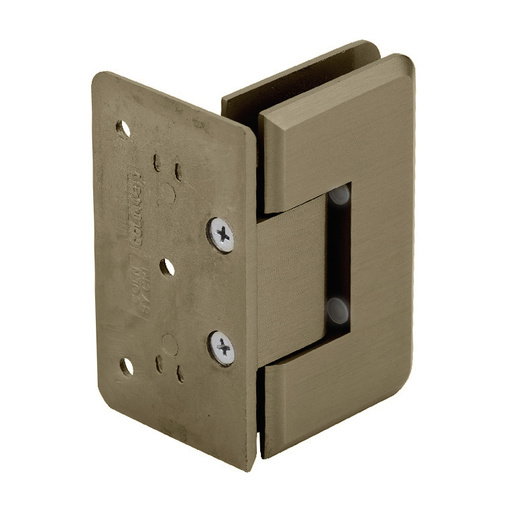

CRL Brushed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
×
CRL Brushed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge
Quantity Standard Price Sale Price Your Price
CRL Brushed Bronze Cologne 044 Series Wall Mount Offset Back Plate Hinge Stock
Branch Location STOCK AVAILABILITY
Product details
  • 5 Degree Pre-Set
    No
  • Adjustable
    No
  • Back Plate
    Offset
  • Design Style
    Beveled
  • Edge Profile
    Beveled
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Brushed Bronze
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
  • Height
    3-15/16 in. (100 mm)
  • Material
    Brass
  • Maximum Clamping Screw Torque
    60 lbf.in (677.9 cN.m)
  • Maximum Door Weight - 2 Hinges
    100 lbs. (45.4 kg)
  • Maximum Door Weight - 3 Hinges
    130 lbs. (59 kg)
  • Maximum Door Width - 1/2 Glass
    32 in. (813 mm)
  • Maximum Door Width - 3/8 Glass
    34 in. (864 mm)
  • Mounting Type
    Wall Mount
  • Opening Style
    Swing(side)
  • Self-Centering
    Yes
  • Series
    Cologne
  • Width
    2-1/4 in. (57 mm)
Product Overview
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • Wall Mount Offset Back Plate Standard Model
  • Use Monolithic Tempered Glass

CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).

Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).

Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request by contacting CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
