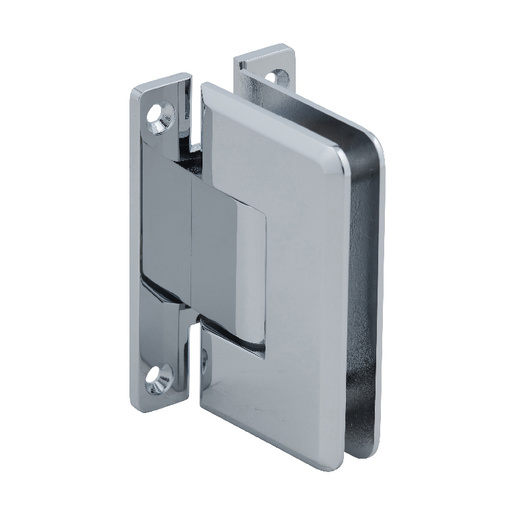

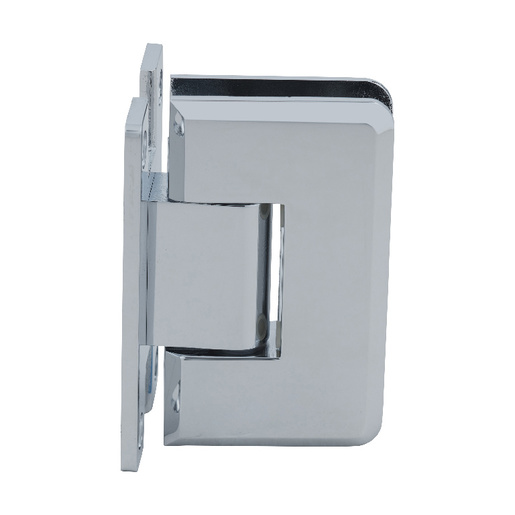

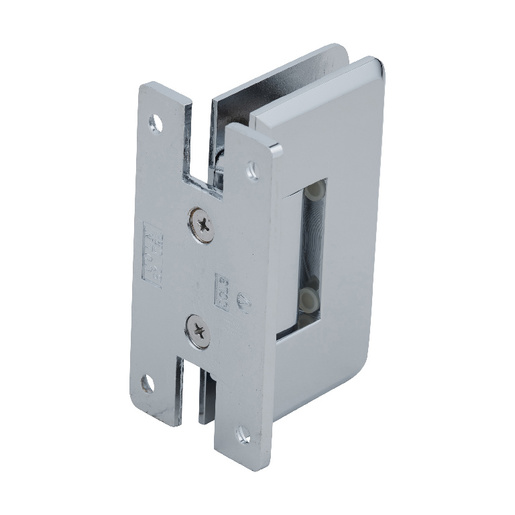

CRL Polished Chrome Cologne 537 Series 5 Degree Pre-Set Wall Mount 'H' Back Plate

Finish/Color : Polished Chrome
Substitutions: C0L037CH, V1E037CH
Item #: C0L537CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.97 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome Cologne 537 Series 5 Degree Pre-Set Wall Mount 'H' Back Plate
×
CRL Polished Chrome Cologne 537 Series 5 Degree Pre-Set Wall Mount 'H' Back Plate
Quantity Standard Price Sale Price Your Price
CRL Polished Chrome Cologne 537 Series 5 Degree Pre-Set Wall Mount 'H' Back Plate Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 1388
Dallas, Texas 24
Chicago (Elgin), Illinois 22
San Francisco/Oakland (Union City), California 18
Atlanta, Georgia 111
New York Area (Secaucus, New Jersey) 33
Boston (Taunton), Massachusetts 3
Orlando, Florida 4/9/2024
Denver, Colorado 4/9/2024
Seattle (Kent), Washington 4/9/2024
Cleveland (Solon), Ohio 31
Philadelphia Area (Moorestown, New Jersey) 8
Phoenix, Arizona 24
Las Vegas, Nevada 44
Houston, Texas 7
Miami, Florida 22
San Diego, California 4/3/2024
Carolinas and Virginia, South Carolina 121
Product details
  • 5 Degree Pre-Set
    Yes
  • Adjustable
    No
  • Back Plate
    'H'
  • Edge Profile
    Beveled
  • Finish/Color:
    Polished Chrome
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
  • Height
    3-15/16 in. (100 mm)
  • Material
    Brass
  • Maximum Clamping Screw Torque
    60 lbf.in (677.9 cN.m)
  • Maximum Door Weight - 2 Hinges
    110 lbs. (49.9 kg)
  • Maximum Door Weight - 3 Hinges
    140 lbs. (63.5 kg)
  • Maximum Door Width
    36 in. (914 mm)
  • Mounting Type
    Wall Mount
  • Positive Close
    No
  • Self-Centering
    Yes
  • Series
    Cologne
  • Width
    2-1/4 in. (57 mm)
Product Overview
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • 5º Pre-Set Model (Factory Set for 5º Tighter Closure Into Shower Interior)
  • Use Monolithic Tempered Glass

CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90º. The opposite side of the Pin is marked 85º. Standard Cologne Hinges come with the 90º side activated. Pre-Set Models come with the Pin pre-set for 85º (5º tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90º. If the standard 5º Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45º).

Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request by contacting CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
