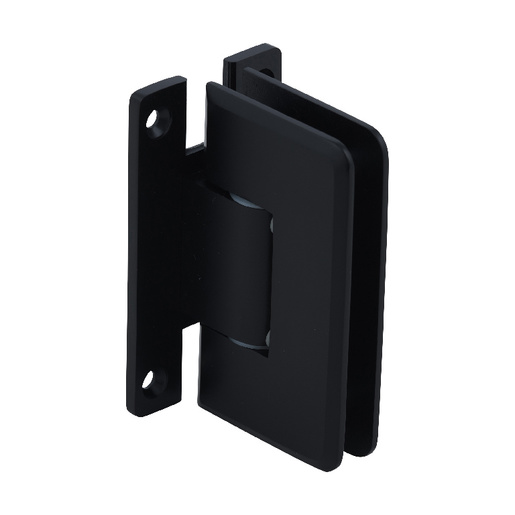

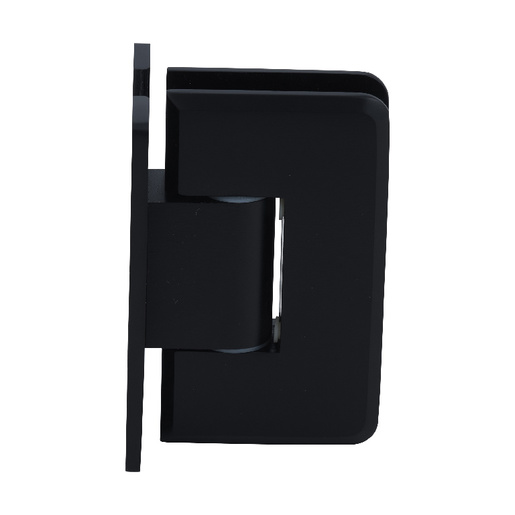

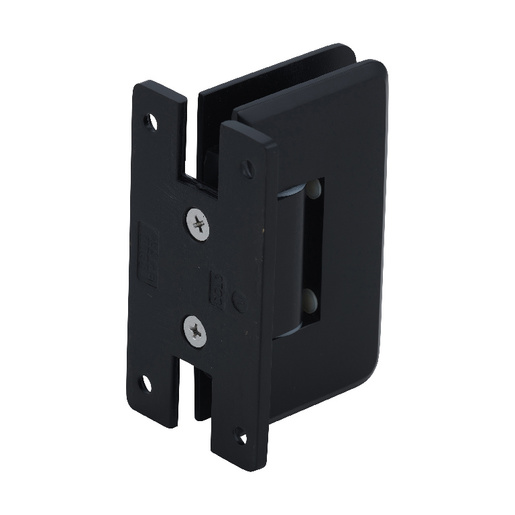

CRL Oil Rubbed Bronze Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
×
CRL Oil Rubbed Bronze Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge
Quantity Standard Price Sale Price Your Price
CRL Oil Rubbed Bronze Cologne 337 Series Adjustable Wall Mount 'H' Back Plate Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 432
Dallas, Texas 58
Chicago (Elgin), Illinois 33
San Francisco/Oakland (Union City), California 4
Atlanta, Georgia 29
New York Area (Secaucus, New Jersey) 35
Boston (Taunton), Massachusetts 4
Orlando, Florida 55
Denver, Colorado 16
Seattle (Kent), Washington 12
Cleveland (Solon), Ohio 4
Philadelphia Area (Moorestown, New Jersey) 2
Phoenix, Arizona 20
Las Vegas, Nevada 11/15/2024
Houston, Texas 17
Miami, Florida 3
San Diego, California 4
Carolinas and Virginia, South Carolina 22
Product details
  • 5 Degree Pre-Set
    No
  • Adjustable
    Yes
  • Back Plate
    'H'
  • Design Style
    Beveled
  • Edge Profile
    Beveled
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Oil Rubbed Bronze
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
  • Height
    3-15/16 in. (100 mm)
  • Material
    Brass
  • Maximum Door Weight - 2 Hinges
    110 lbs. (49.9 kg)
  • Maximum Door Weight - 3 Hinges
    140 lbs. (63.5 kg)
  • Maximum Door Width
    36 in. (914 mm)
  • Mounting Type
    Wall Mount
  • Opening Style
    Swing(side)
  • Positive Close
    No
  • Self-Centering
    Yes
  • Series
    Cologne
  • Width
    2-5/16 in. (59 mm)
Product Overview
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
  • Available in Several Beautiful Finishes
  • 3 Year Warranty
  • Adjustable Wall Mount Full Back Plate
  • Use Monolithic Tempered Glass

The CRL Adjustable Cologne Series has taken our popular Cologne Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired angle. The door can swing 90º inward and also 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to Any Angle Up to 90º without Having to Take Door Down
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out (at factory set position).
Closing Type: Self-Centering when within 15º of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.

Custom finishes are available on request by contacting CRL Technical Sales.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
