CRL Matte Black Bellagio Adjustable Wall Mount Offset Back Plate Hinge

Item #: BEL344MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.74 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Bellagio Adjustable Wall Mount Offset Back Plate Hinge
×
CRL Matte Black Bellagio Adjustable Wall Mount Offset Back Plate Hinge
Quantity Standard Price Sale Price Your Price
CRL Matte Black Bellagio Adjustable Wall Mount Offset Back Plate Hinge Stock
Branch Location State STOCK AVAILABILITY
Kent Washington 4
Saint Peters Missouri Ask Us 1.800.421.6144
Secaucus New Jersey 4
Solon Ohio 9
Union City California Ask Us 1.800.421.6144
Rock Hill South Carolina 2
Hauppauge New York Ask Us 1.800.421.6144
San Diego California 1
Atlanta Georgia 11
Orlando Florida 1
Moorestown New Jersey 4
Phoenix Arizona 2
Los Angeles California 327
Denver Colorado 18
Sunrise Florida Ask Us 1.800.421.6144
Elgin Illinois 10
Taunton Massachusetts Ask Us 1.800.421.6144
Fairfield Ohio Ask Us 1.800.421.6144
Dallas Texas 6
Tampa Florida Ask Us 1.800.421.6144
Las Vegas Nevada Ask Us 1.800.421.6144
Houston Texas 3
Product Details
  • Back Plate
    Offset
  • Design Style
    Concealed/Premium
  • Edge Profile
    Square
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Matte Black
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Height
    2-15/16 in. (75 mm)
  • Material
    Brass
  • Maximum Door Weight
    110
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Wall Mount
  • Opening Style
    Swing(side)
  • Width
    2-15/16 in. (75 mm)
Product Overview
  • Works with 5/16” to 3/8” (8 mm to 10 mm) glass
  • Matching Bellagio Series Brackets Available
  • Tight Gaps Prevent Water Infiltration
  • Self-centers from 25 Degrees
  • Adjustable Positive Closure

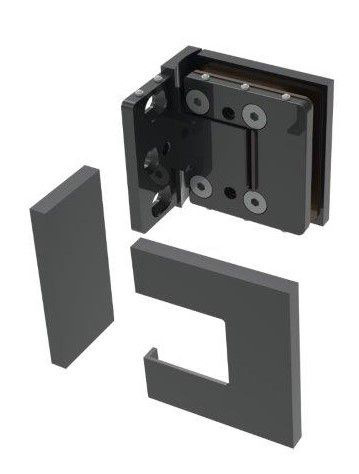

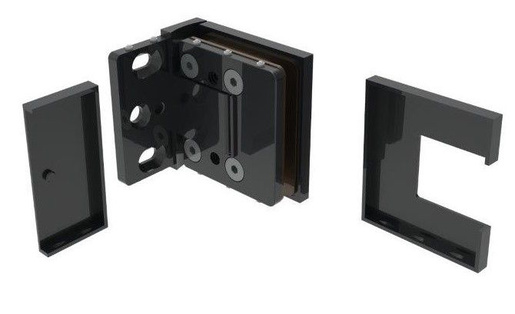

  • Snap-on Covers Conceal Screws
  • Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The modern Bellagio Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 5/16” to 3/8” (8 mm to 10 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 25° of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.
