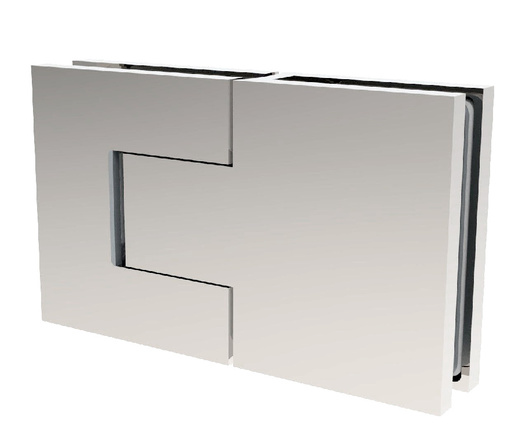

CRL Polished Chrome Bellagio Glass-to-Glass 180 Degree Hinge

Finish/Color : Polished Chrome
Item #: BEL380CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.205 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome Bellagio Glass-to-Glass 180 Degree Hinge
×
CRL Polished Chrome Bellagio Glass-to-Glass 180 Degree Hinge
Quantity Standard Price Sale Price Your Price
CRL Polished Chrome Bellagio Glass-to-Glass 180 Degree Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 38
Dallas, Texas 7/2/2024
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 7/4/2024
Atlanta, Georgia 1
New York Area (Secaucus, New Jersey) 7
Boston (Taunton), Massachusetts 7/5/2024
Orlando, Florida 7/2/2024
Denver, Colorado 7/2/2024
Seattle (Kent), Washington 7/2/2024
Cleveland (Solon), Ohio 7/2/2024
Philadelphia Area (Moorestown, New Jersey) 7/5/2024
Phoenix, Arizona 7/4/2024
Las Vegas, Nevada 7/4/2024
Houston, Texas 7/2/2024
Miami, Florida 7/2/2024
San Diego, California 7/1/2024
Carolinas and Virginia, South Carolina 2
Product details
  • Edge Profile
    Square
  • Finish/Color:
    Polished Chrome
  • Glass To Glass Angle
    180
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Height
    2-15/16 in. (75 mm)
  • Material
    Brass
  • Maximum Door Weight
    110
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Glass To Glass
  • Series
    Bellagio
  • Width
    4-7/8 in. (124 mm)
Product Overview
  • Works with 5/16” to 3/8” (8 mm to 10 mm) glass
  • Matching Bellagio Series Brackets Available
  • Tight Gaps Prevent Water Infiltration
  • Self-centers from 25 Degrees
  • Adjustable Positive Closure

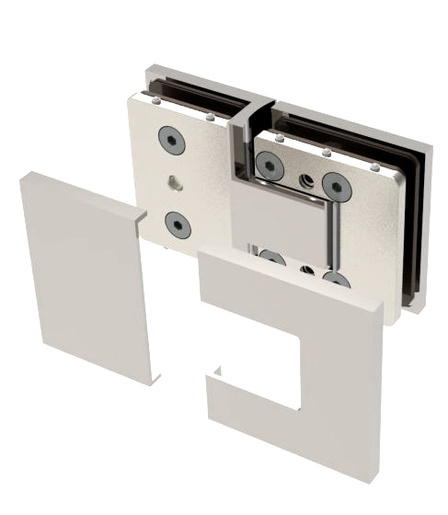

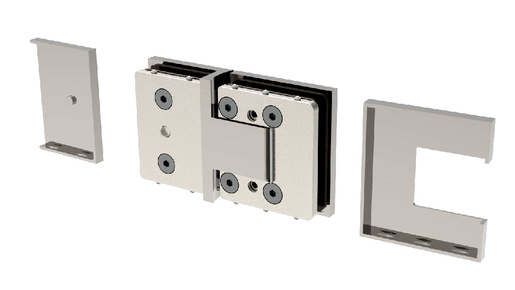

  • Snap-on Covers Conceal Screws
  • Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The modern Bellagio Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 5/16” to 3/8” (8 mm to 10 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 25° of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.
