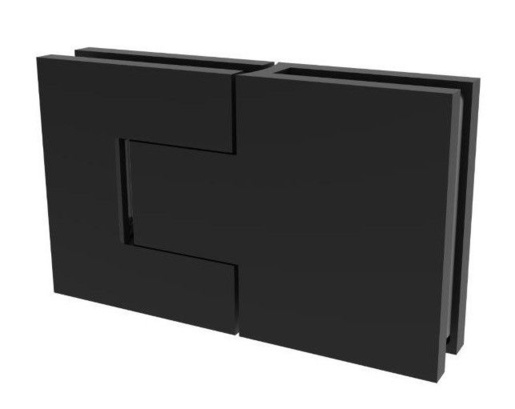

CRL Matte Black Bellagio Glass-to-Glass 180 Degree Hinge

Item #: BEL380MBL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.205 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Matte Black Bellagio Glass-to-Glass 180 Degree Hinge
×
CRL Matte Black Bellagio Glass-to-Glass 180 Degree Hinge
Quantity Standard Price Sale Price Your Price
CRL Matte Black Bellagio Glass-to-Glass 180 Degree Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 82
Dallas, Texas 1/31/2025
Chicago (Elgin), Illinois 2
San Francisco/Oakland (Union City), California 1
Atlanta, Georgia 2/3/2025
New York Area (Secaucus, New Jersey) 9
Boston (Taunton), Massachusetts 2/3/2025
Orlando, Florida 1
Denver, Colorado 2/4/2025
Seattle (Kent), Washington 2/4/2025
Cleveland (Solon), Ohio 2/3/2025
Philadelphia Area (Moorestown, New Jersey) 1/31/2025
Phoenix, Arizona 1/30/2025
Las Vegas, Nevada 1/31/2025
Houston, Texas 1/4/2025
Miami, Florida 2/5/2025
San Diego, California 1/29/2025
Los Angeles(Gardena) In Other Service Center
Carolinas and Virginia, South Carolina 2/3/2025
Product Details
  • Design Style
    Concealed/Premium
  • Edge Profile
    Square
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Matte Black
  • Glass To Glass Angle
    180
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Height
    2-15/16 in. (75 mm)
  • Material
    Brass
  • Maximum Door Weight
    110
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Glass To Glass
  • Opening Style
    Swing(side)
  • Series
    Bellagio
  • Width
    4-7/8 in. (124 mm)
Product Overview
  • Works with 5/16” to 3/8” (8 mm to 10 mm) glass
  • Matching Bellagio Series Brackets Available
  • Tight Gaps Prevent Water Infiltration
  • Self-centers from 25 Degrees
  • Adjustable Positive Closure

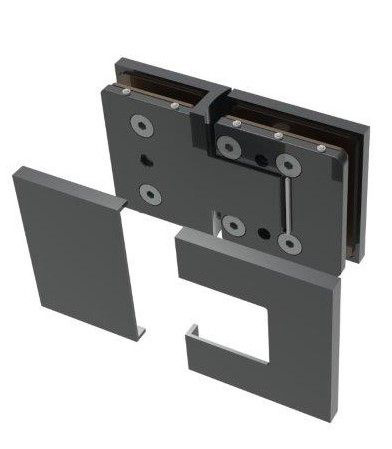

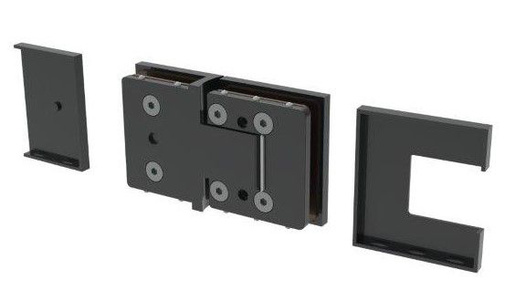

  • Snap-on Covers Conceal Screws
  • Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

The modern Bellagio Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 5/16” to 3/8” (8 mm to 10 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 25° of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.


Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
