CRL Brushed Nickel Bellagio Glass-to-Glass 180 Degree Hinge

Finish/Color : Brushed Nickel
Item #: BEL380BN
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Nickel Bellagio Glass-to-Glass 180 Degree Hinge
CRL Brushed Nickel Bellagio Glass-to-Glass 180 Degree Hinge
Quantity Standard Price Sale Price Your Price
CRL Brushed Nickel Bellagio Glass-to-Glass 180 Degree Hinge Stock
Los Angeles, California 96
Dallas, Texas 6/28/2024
Chicago (Elgin), Illinois 6/28/2024
San Francisco/Oakland (Union City), California 6/27/2024
Atlanta, Georgia 7/1/2024
New York Area (Secaucus, New Jersey) 6/25/2024
Boston (Taunton), Massachusetts 6/28/2024
Orlando, Florida 7/2/2024
Denver, Colorado 7/2/2024
Seattle (Kent), Washington 7/2/2024
Cleveland (Solon), Ohio 7/1/2024
Philadelphia Area (Moorestown, New Jersey) 6/28/2024
Phoenix, Arizona 6/27/2024
Las Vegas, Nevada 6/27/2024
Houston, Texas 6/28/2024
Miami, Florida 7/2/2024
San Diego, California 6/26/2024
Carolinas and Virginia, South Carolina 7/2/2024
Product details
  • Edge Profile
  • Finish/Color:
    Brushed Nickel
  • Glass To Glass Angle
  • Glazing Thickness
    5/16 in. To 3/8 in. (8 mm To 10 mm)
  • Height
    2-15/16 in. (75 mm)
  • Material
  • Maximum Door Weight
  • Maximum Door Width
    39 in. (991 mm)
  • Mounting Type
    Glass To Glass
  • Series
  • Width
    4-7/8 in. (124 mm)
Product Overview
  • Works with 5/16” to 3/8” (8 mm to 10 mm) glass
  • Matching Bellagio Series Brackets Available
  • Tight Gaps Prevent Water Infiltration
  • Self-centers from 25 Degrees
  • Adjustable Positive Closure

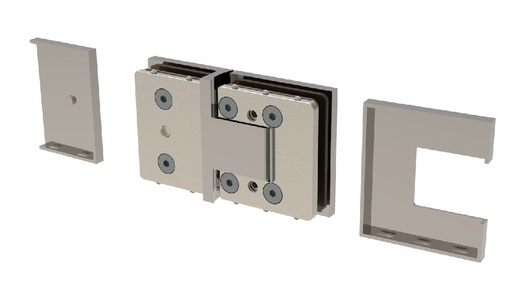

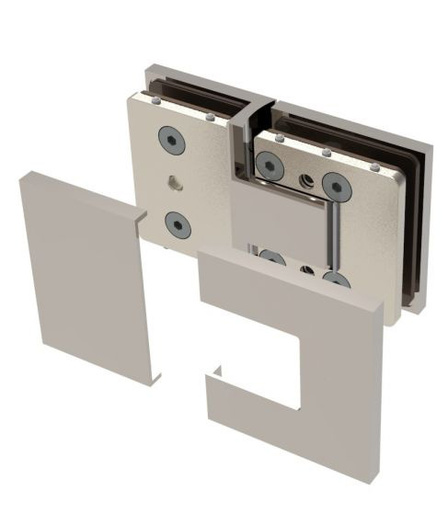

  • Snap-on Covers Conceal Screws
  • Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard

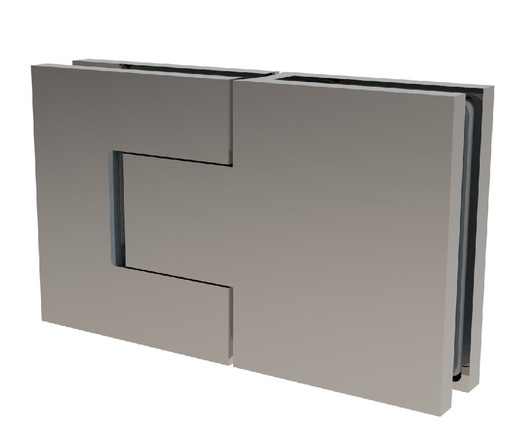

The modern Bellagio Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 5/16” to 3/8” (8 mm to 10 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 25° of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
