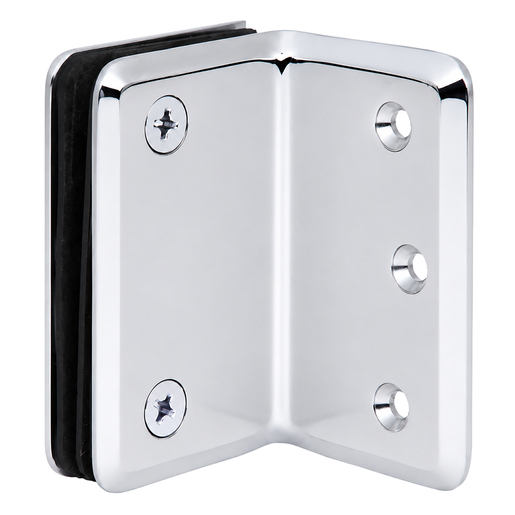

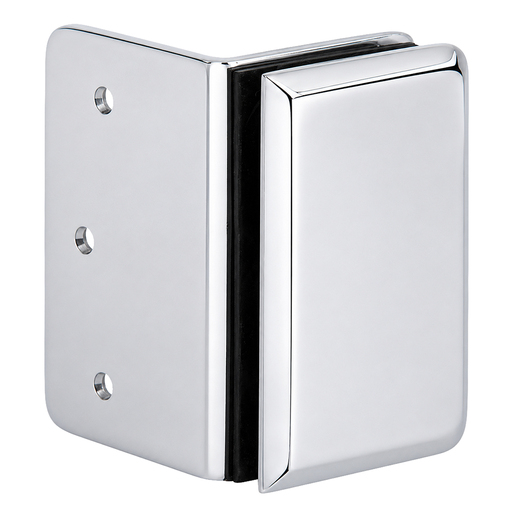

CRL Polished Chrome Pinnacle and Prima Series Wall Mount Bracket

Item #: P190SCH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.334 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Chrome Pinnacle and Prima Series Wall Mount Bracket
×
CRL Polished Chrome Pinnacle and Prima Series Wall Mount Bracket
Quantity Standard Price Sale Price Your Price
CRL Polished Chrome Pinnacle and Prima Series Wall Mount Bracket Stock
Branch Location STOCK AVAILABILITY
Kent 16
Secaucus 281
Solon 19
Union City Ask Us 1.800.421.6144
Rock Hill 88
Hauppauge 9
San Diego 2
Atlanta 237
Orlando 15
Moorestown 38
Hamilton Ask Us 1.800.421.6144
Phoenix 15
Hazelwood Ask Us 1.800.421.6144
Los Angeles 1884
Denver 2
Sunrise 5
Elgin 14
Taunton 104
Dallas 19
Tampa 18
Las Vegas 20
Houston 2
Product Details
  • Finish/Color:
    Polished Chrome
  • Glazing Thickness
    5/16 in. To 1/2 in. (8 mm To 12 mm)
  • Material
    Brass
  • Mounting Type
    Wall Mount
  • Series
    Pinnacle
Product Overview
  • Matches Configuration of Our Pinnacle, Prima, Senior Prima, Cologne, and Estate Hinges
  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Solid Brass
  • Use Monolithic Tempered Glass

CRL Prima Series Wall Mount Glass Brackets are designed to work with 5/16" to 1/2" (8 to 12 mm) thick glass. Can also be used as a horizontal shelf bracket. The Prima Wall Brackets have the identical configuration as the Prima and Pinnacle Hinges which will help provide continuity of design. They feature rounded corners and beveled edges in several decorator finishes and are constructed of solid brass. Custom finishes are available upon request.

P612** replacement screws



SPECIFICATIONS:
  • Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
  • Material: Solid Brass
  • Includes: Gaskets and Mounting Screws
    Hole Diameter Required: Two 3/4"(19 mm) Holes Per Panel
