• For 5/16" to 1/2" (8 or 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps

Solid brass CRL Standard 180 Degree Glass Clamps are ideal for fixed transom or inline panel installations in frameless shower enclosures.


Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

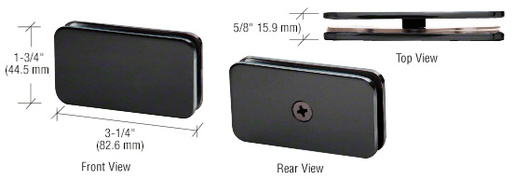

SPECIFICATIONS:
Materials: Solid Brass
Available Finishes: Shown at top of page.
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Fabrication Required: Stud will fit between panels with 7/16" (11 mm) gap, or you can notch the glass around the screw stud for a tighter gap.
Includes: Gaskets
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
