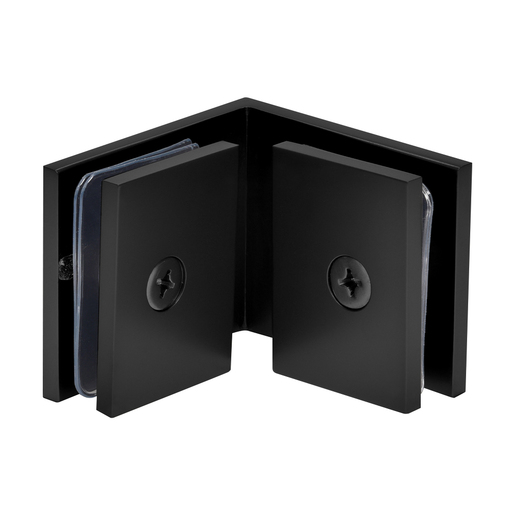

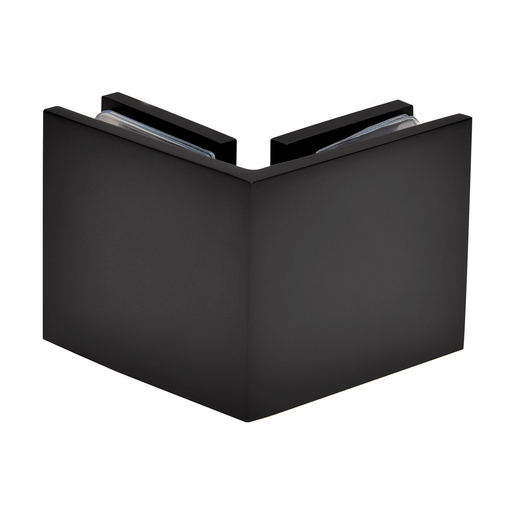

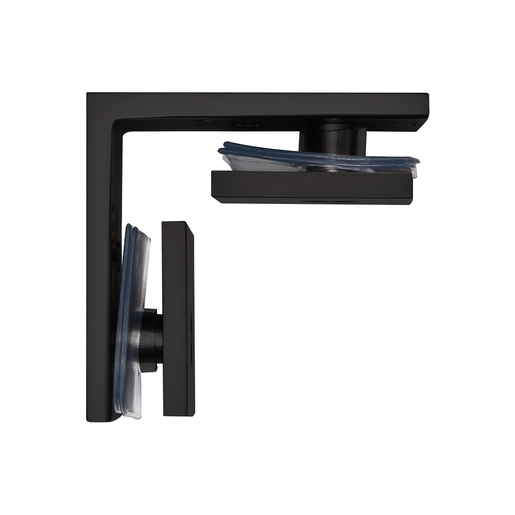

CRL Matte Black Square 90 Degree Glass-to-Glass Clamp
×
CRL Matte Black Square 90 Degree Glass-to-Glass Clamp
Quantity Standard Price Sale Price Your Price
CRL Matte Black Square 90 Degree Glass-to-Glass Clamp Stock
Branch Location State STOCK AVAILABILITY
Kent Washington 11
Saint Peters Missouri 14
Secaucus New Jersey 117
Solon Ohio 9
Union City California 37
Rock Hill South Carolina 17
Hauppauge New York 2
San Diego California 4
Atlanta Georgia 58
Orlando Florida 15
Moorestown New Jersey 41
Phoenix Arizona 22
Los Angeles California 2092
Denver Colorado 30
Sunrise Florida 24
Elgin Illinois 37
Taunton Massachusetts 47
Fairfield Ohio 18
Dallas Texas 128
Tampa Florida 19
Las Vegas Nevada 29
Houston Texas 73
Product Details
  • Design Style
    Squared
  • Enclosure Type
    Corner, Niche, Bathtub, Tailor Made Solutions
  • Finish/Color:
    Matte Black
  • Glass To Glass Angle
    90
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)

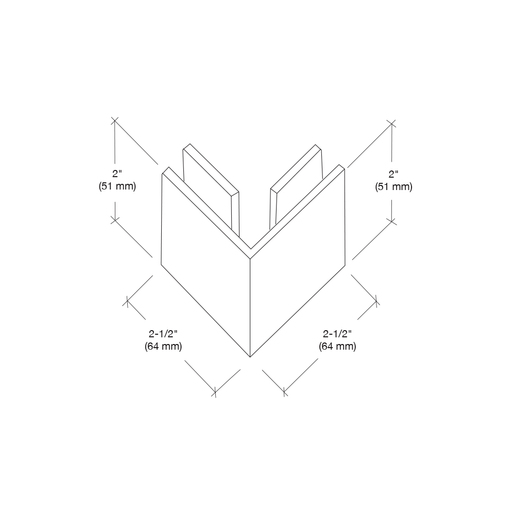

  • Height
    2 in. (51 mm)
  • Leg Width
    2-1/2 in. (64 mm)
  • Material
    Brass
  • Mounting Type
    Glass To Glass
Product Overview
  • For 3/8" to 1/2" (10 to 12 mm) Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
  • Glass Fabrication Required to Accommodate Clamps
  • Use Monolithic Tempered Glass

CRL Square 90 Degree Glass-to-Glass Clamps have sharp squared off corners and a closed back. Used to connect two fixed glass panels meeting at 90 degrees. Panels may be overlapped or mitered at the corner. Drawings and templates for all Clamps are available.


SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
